Rafturi drive-in

Rafturi drive-in

Utilizarea maximă a spațiului disponibil. Eliminarea culoarelor dintre rafturi. Admite tot atâtea referințe câte benzi de încărcare există.

Potrivit pentru produse omogene cu viteză de rulaj redusă și cu un număr mare de paleți per SKU.

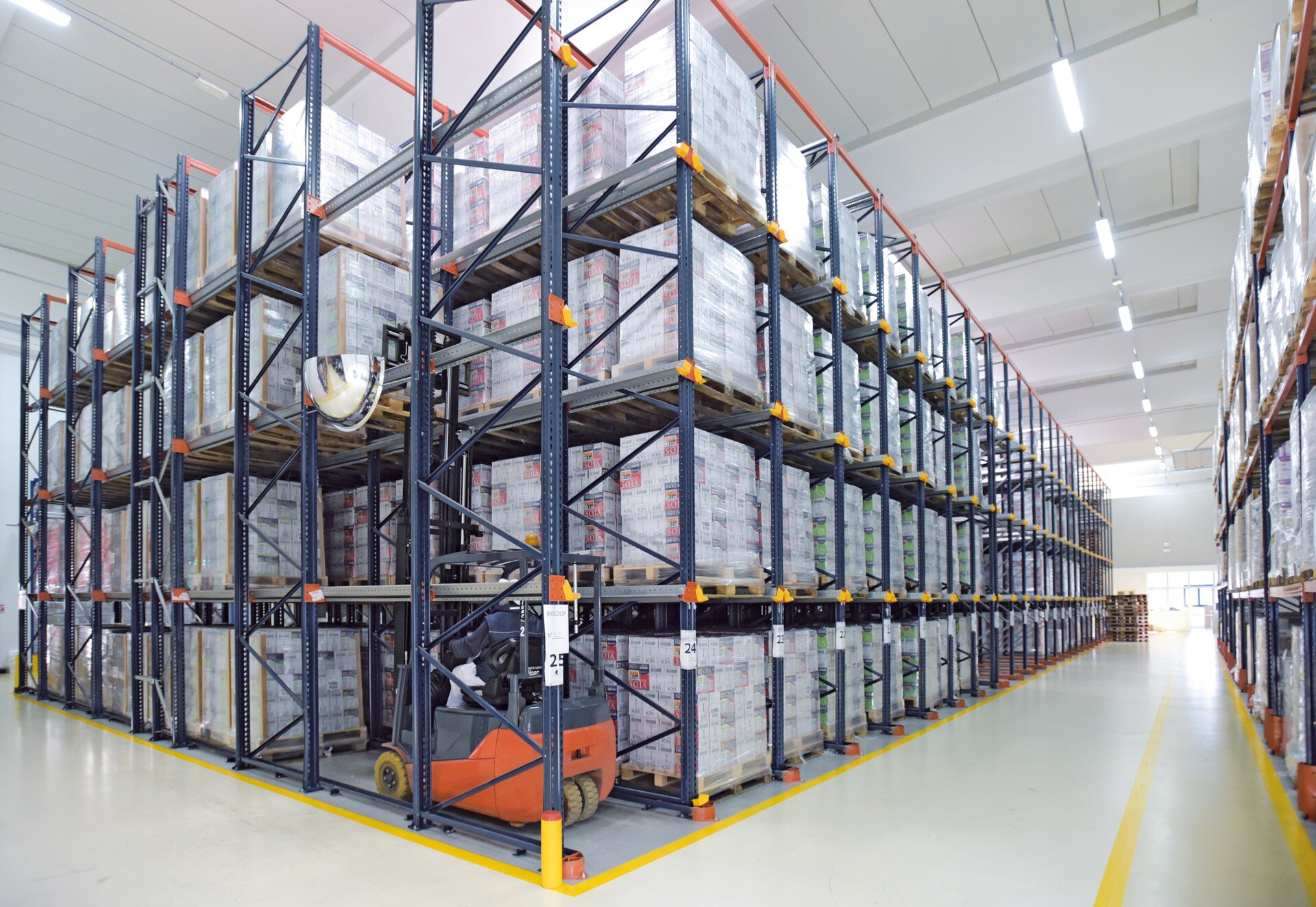

The forklift trucks run inside the drive-in storage lanes

cdfe80c1-cf95-02bb-c1c1-a6acf360a1cd

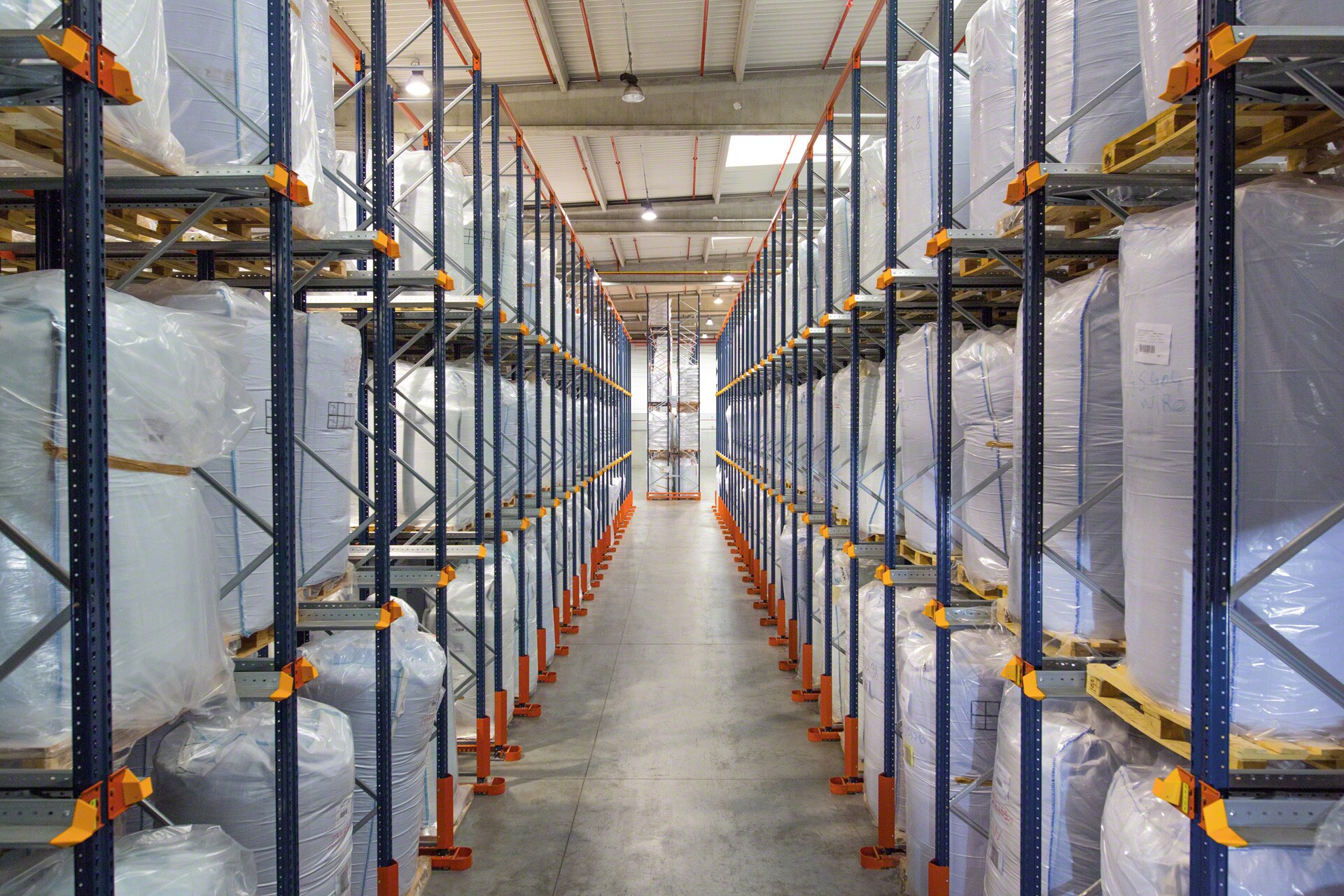

The drive-in system makes it possible to design rack layouts with different load modules

e604030f-c897-96df-bcfe-c996239a8e61

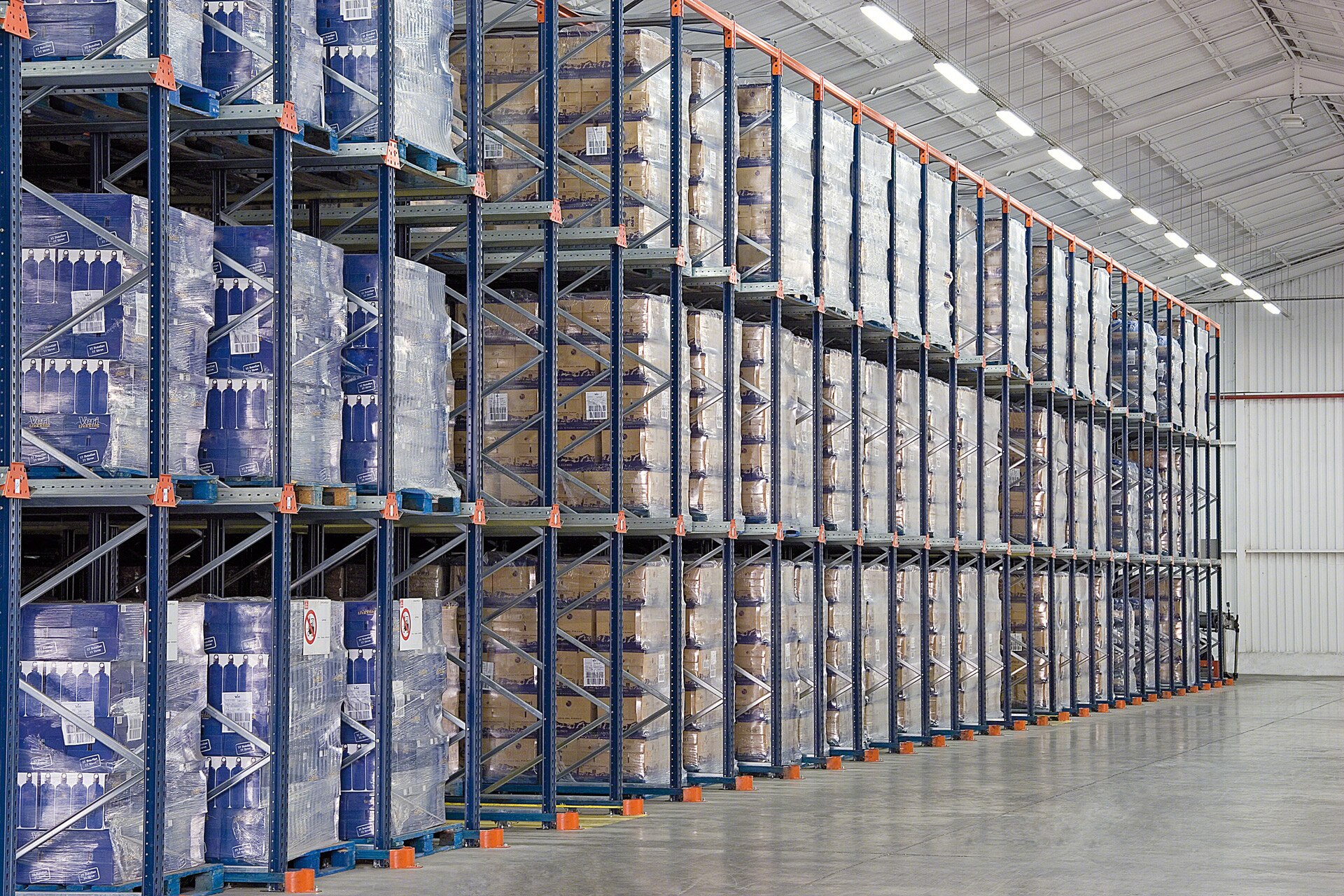

Drive-in racks are ideal for storing many pallets of the same SKU

2601a17f-4b0b-13f9-8320-29f63678eba9

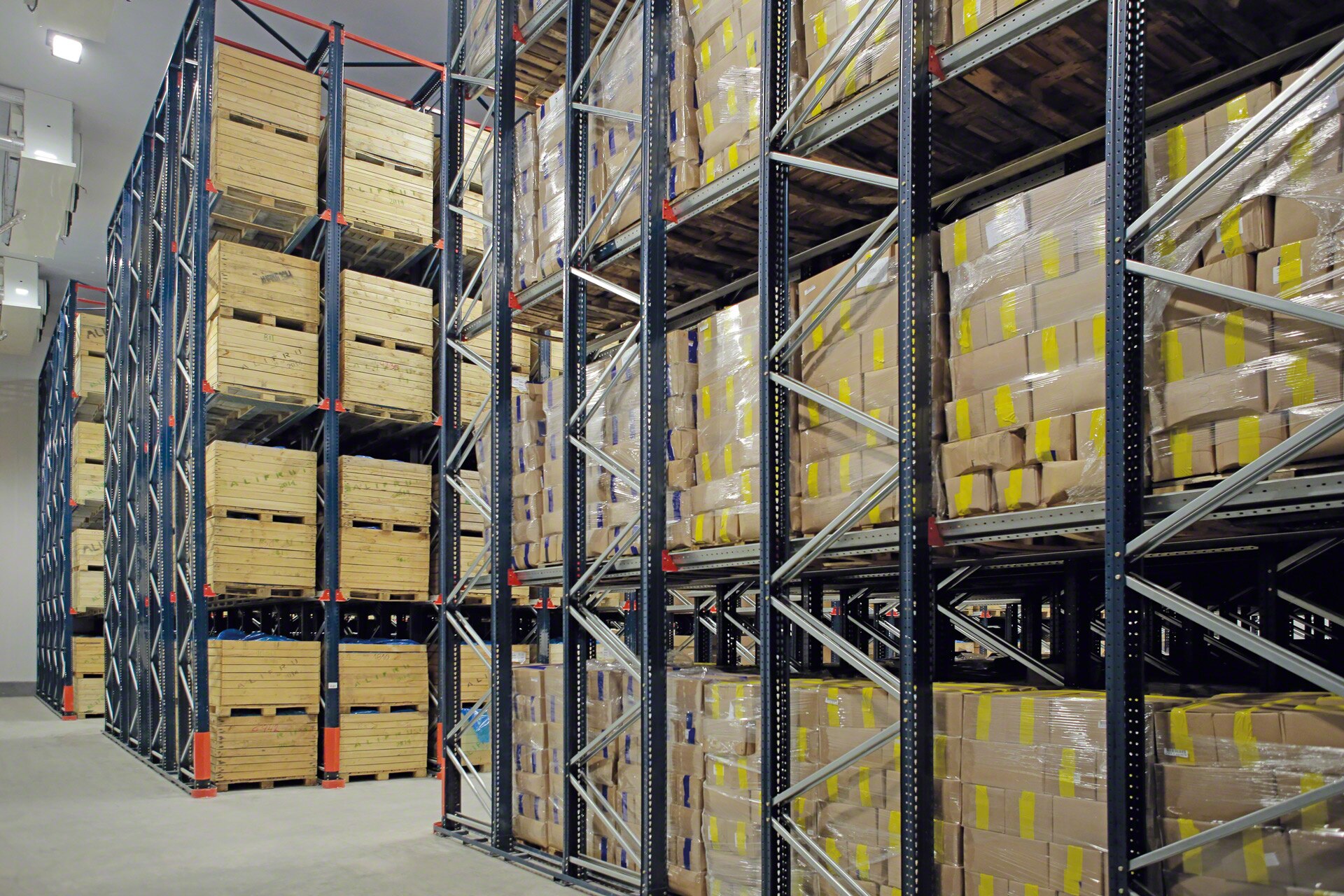

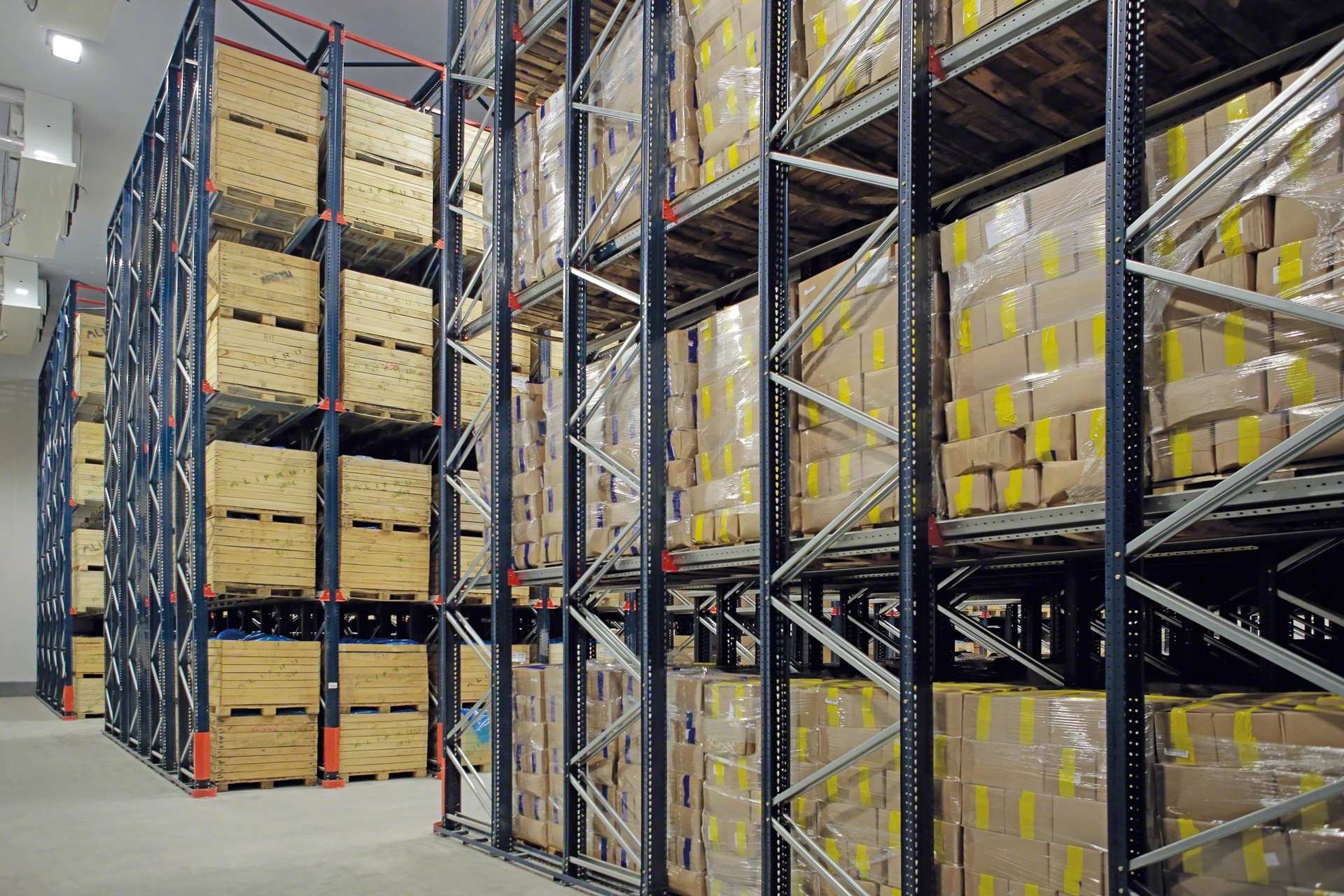

Cross braces reinforce the structure that comprise the drive-in racks to protect the load in the event of seismic tremors

2d3b8d07-fba0-e999-97da-0ae6e8ce4155

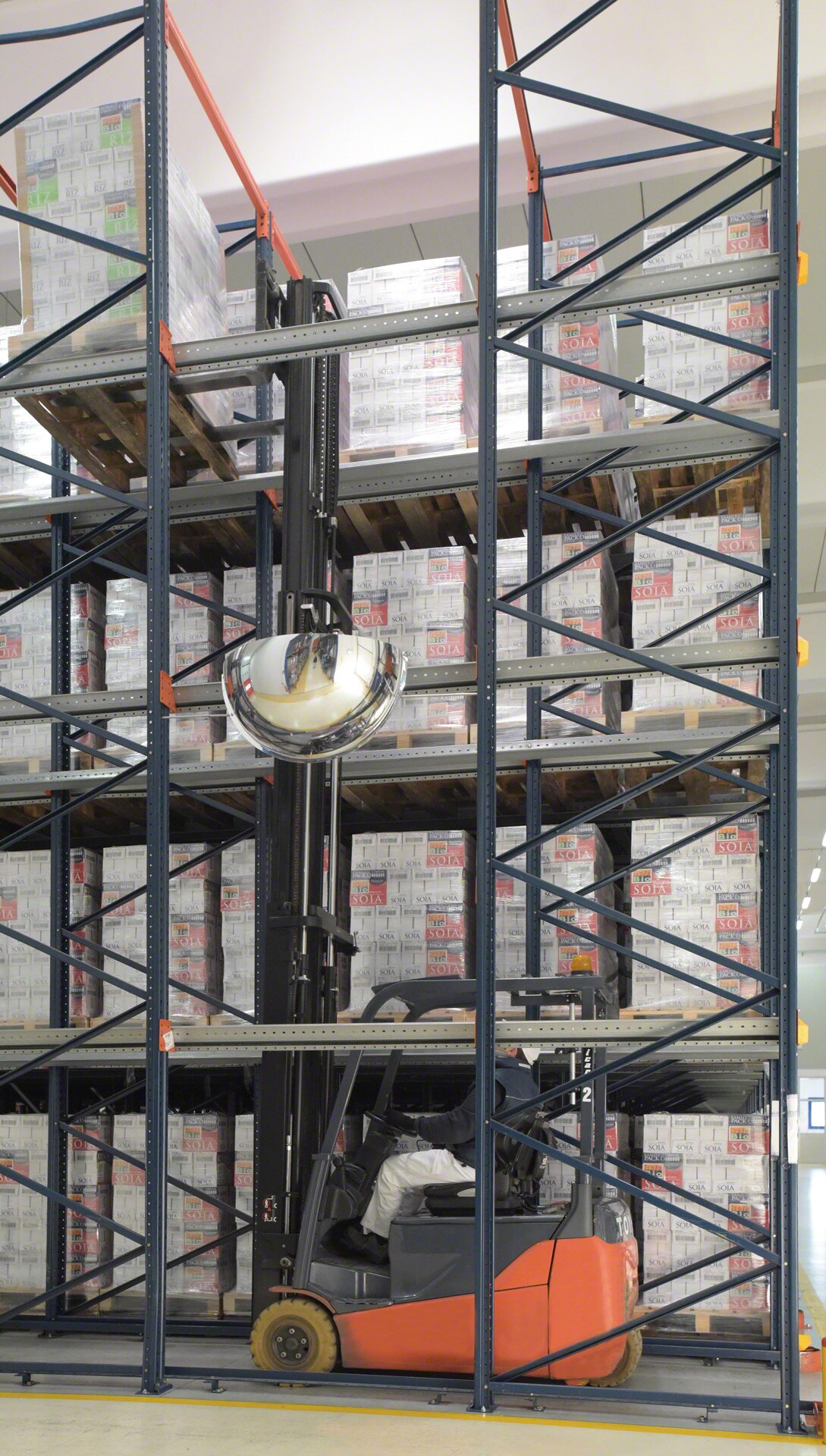

Forklift trucks travel along the lanes to store or remove pallets

c556bfa2-2a30-a562-6b2b-cc131a39f7d5

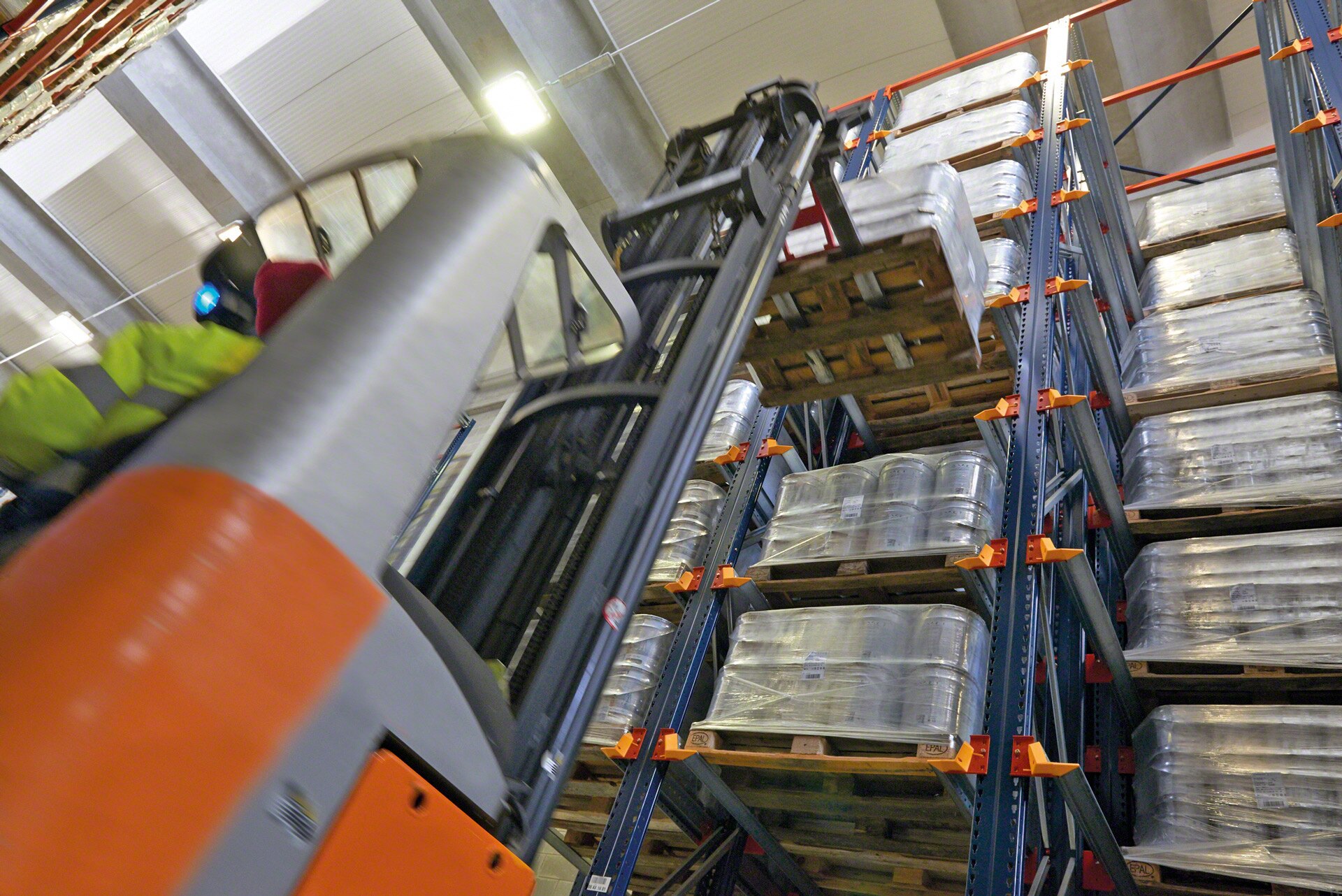

Compact racks make it easier for handling equipment to load and unload goods

768c52c6-4755-27d8-9ede-7ec28ecd3d9d

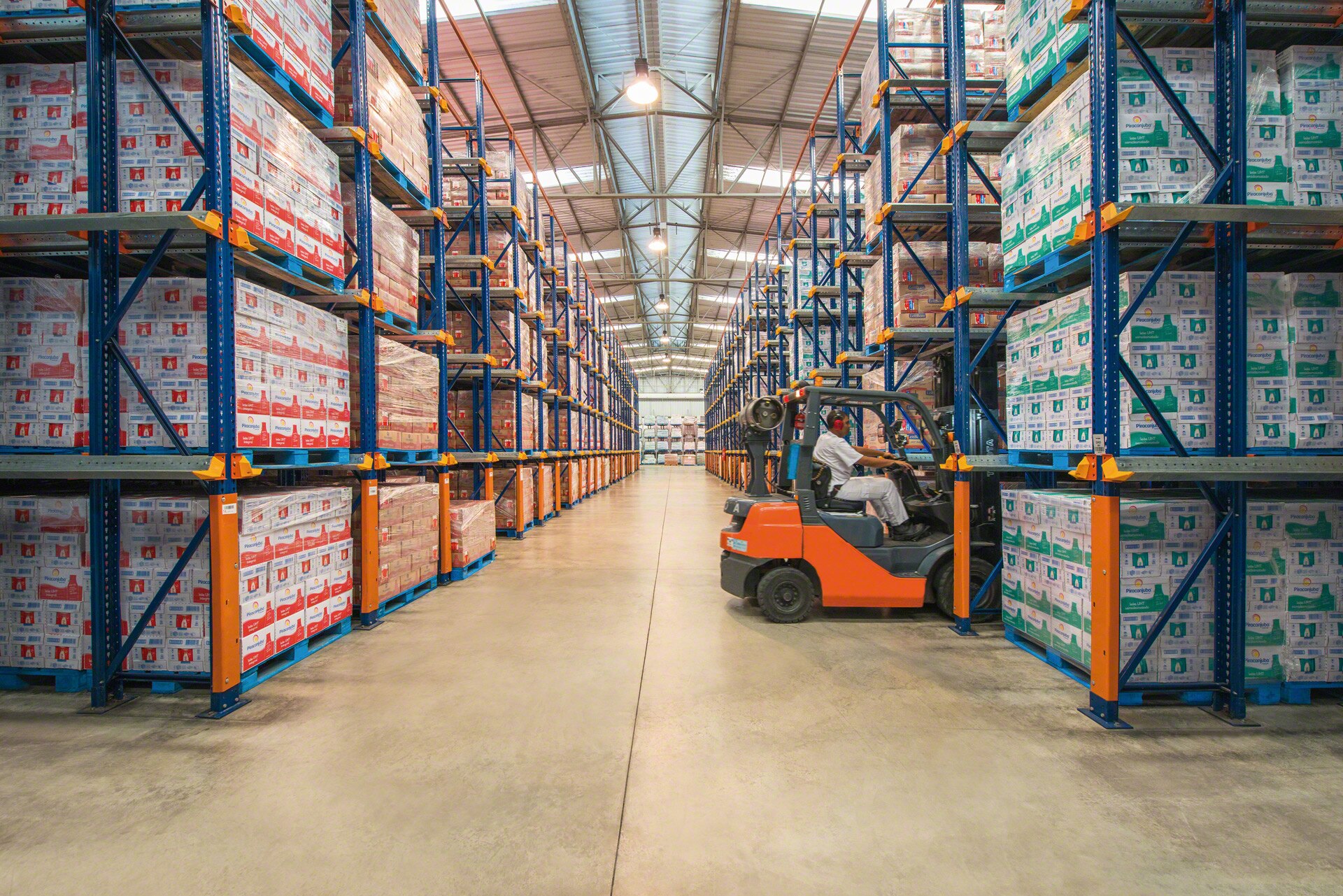

Forklift trucks run inside the drive-in storage lanes

6e57a2c9-e5b3-a6f7-2bc7-2291308c2404

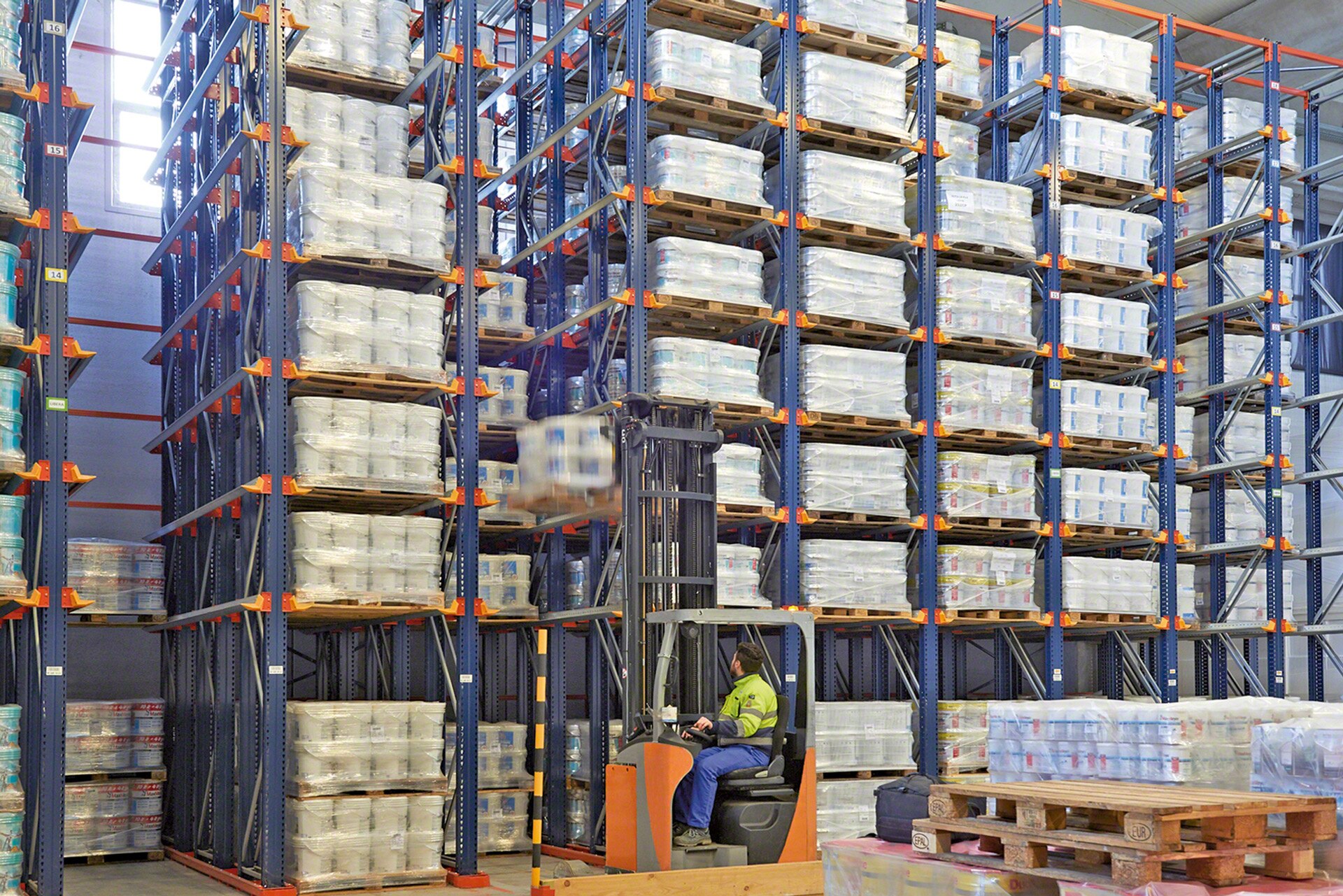

The drive-in racking is the ideal storage system to maximize capacity of the installation

e3db9b5c-af08-b44a-59a8-d93d0d090f37

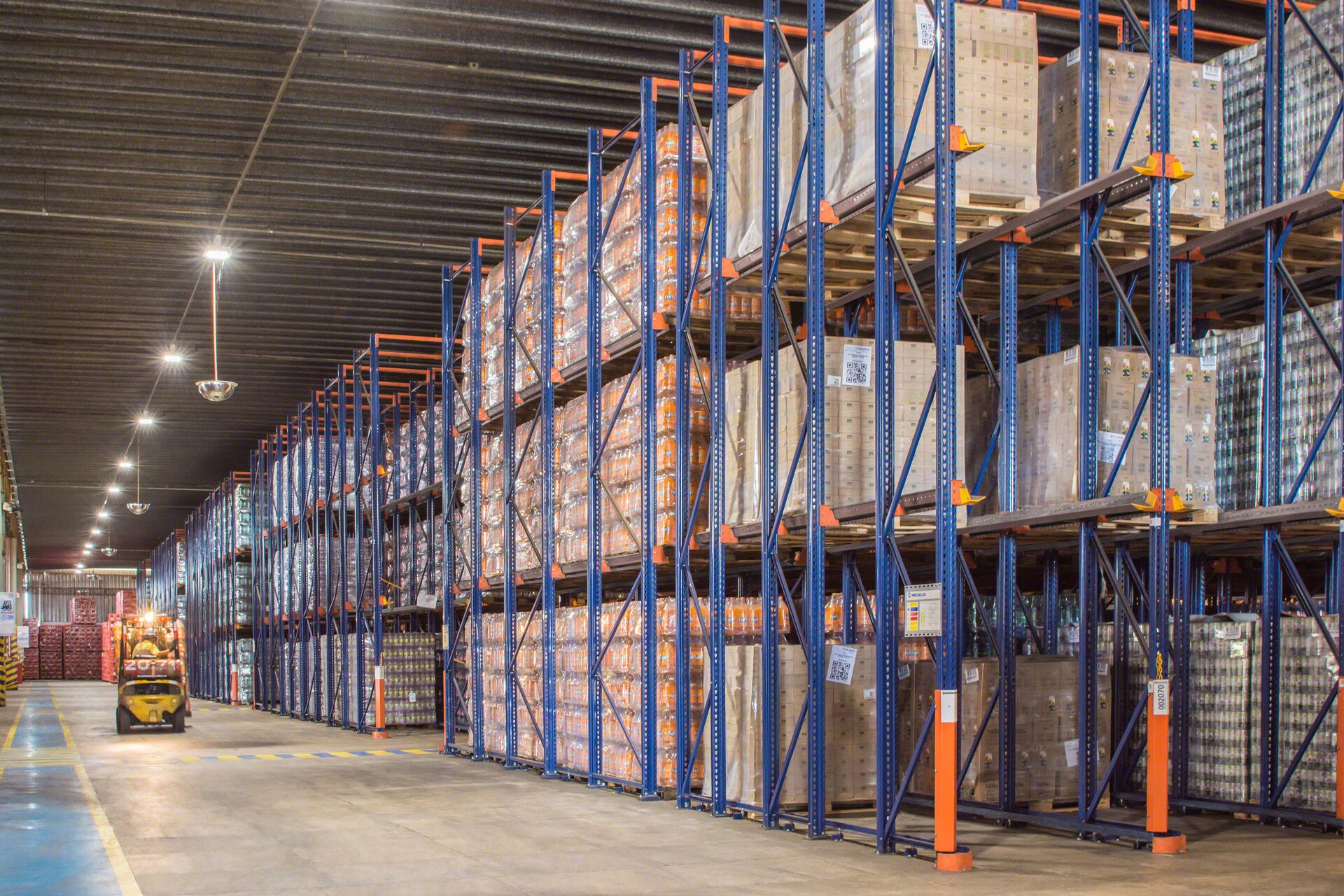

Drive-in system increases the capacity of the installation significantly

86119baf-9f19-2692-22ea-6fdf3cdf3252

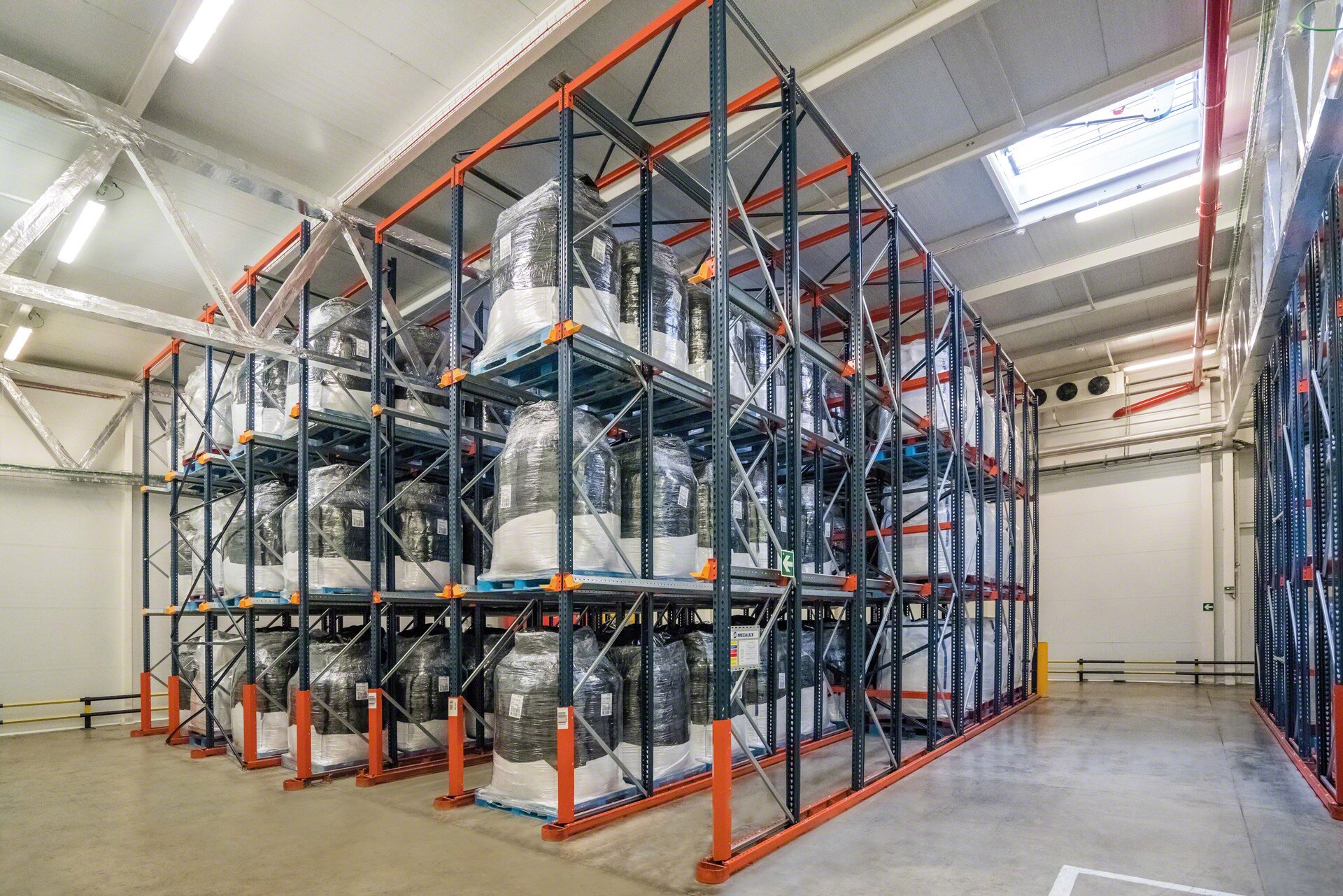

The high-density drive-in racking can be: drive-in or drive-through, depending on whether they access one aisle or two

79130508-f834-c7c5-a204-74de89038759

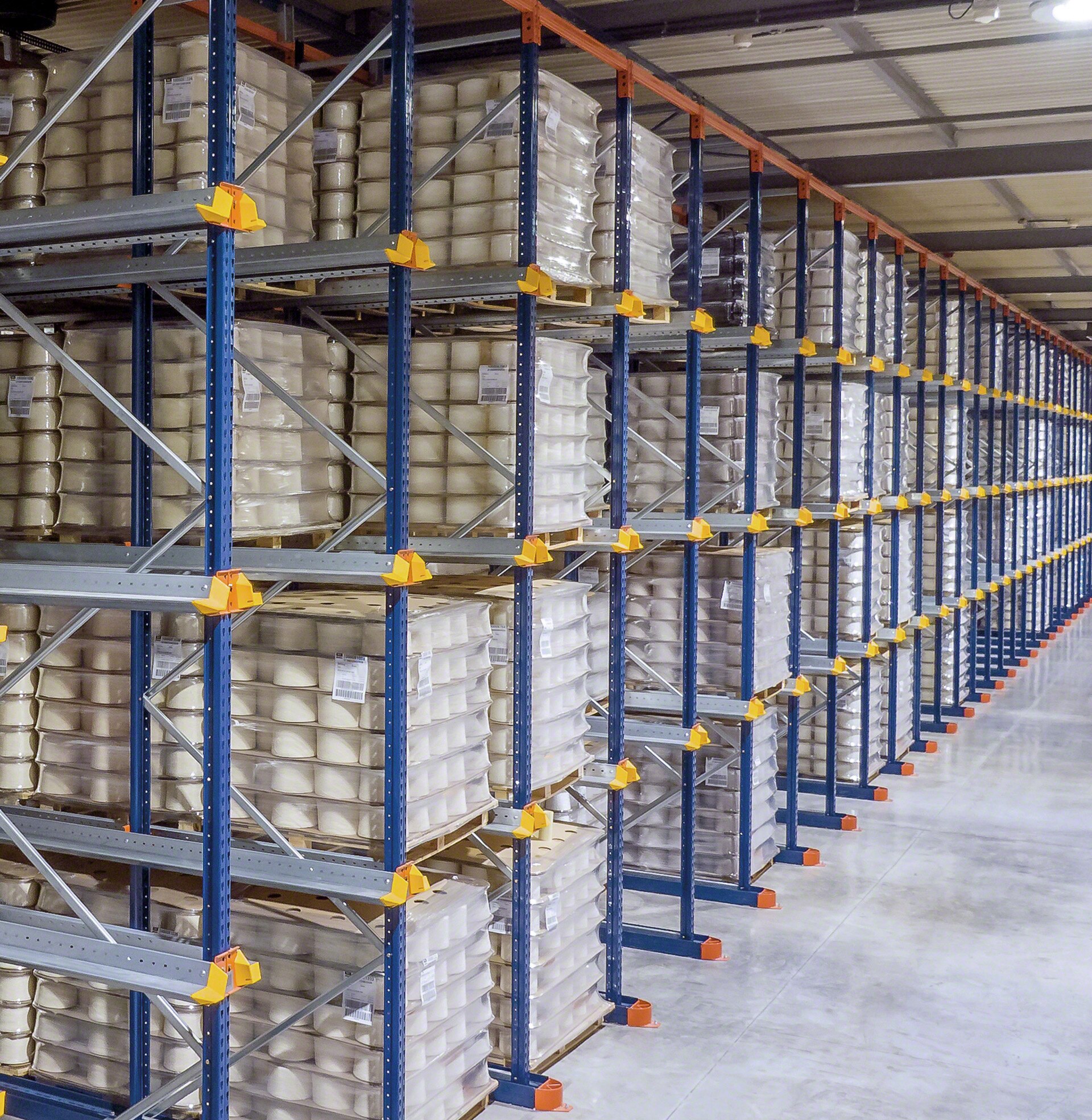

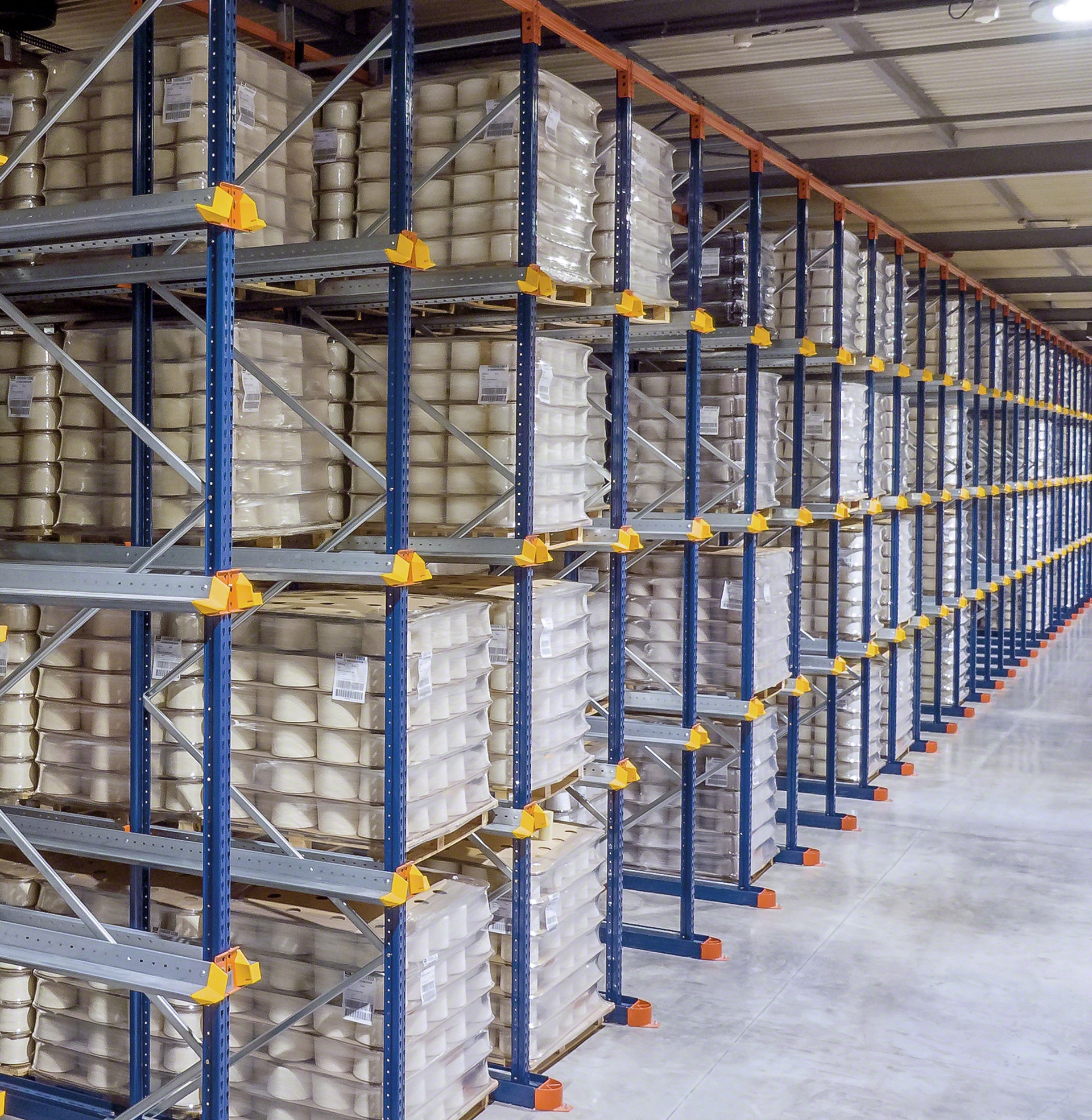

Drive-in systems have multiple lanes through which handling equipment access pallets

6e487454-5da3-84b8-05a9-cb191da4cf21

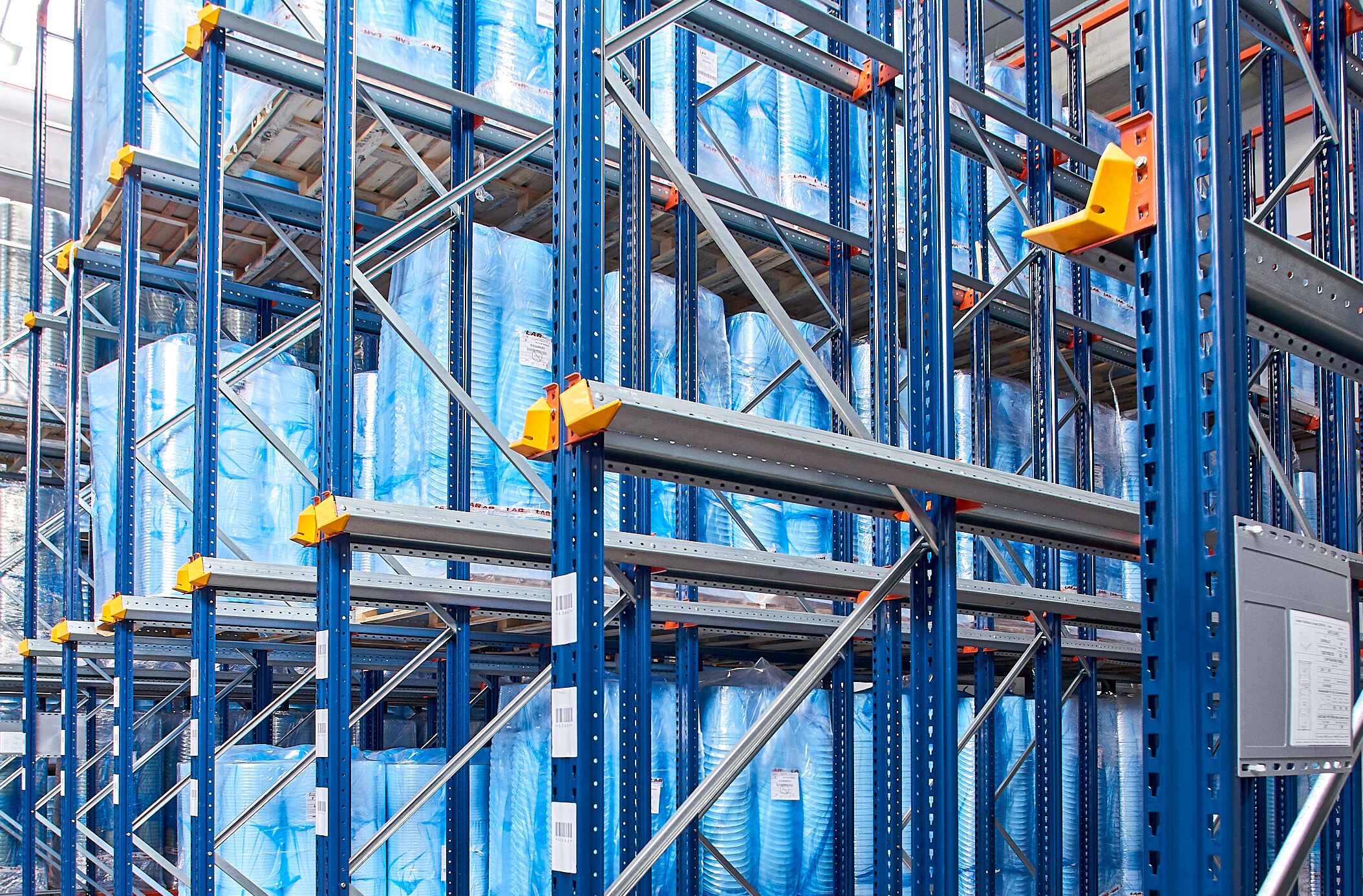

GP rails are the most used to support the weight of the goods on drive-in racks

261f4da2-0b2c-d4d7-67bc-9da66104e54a

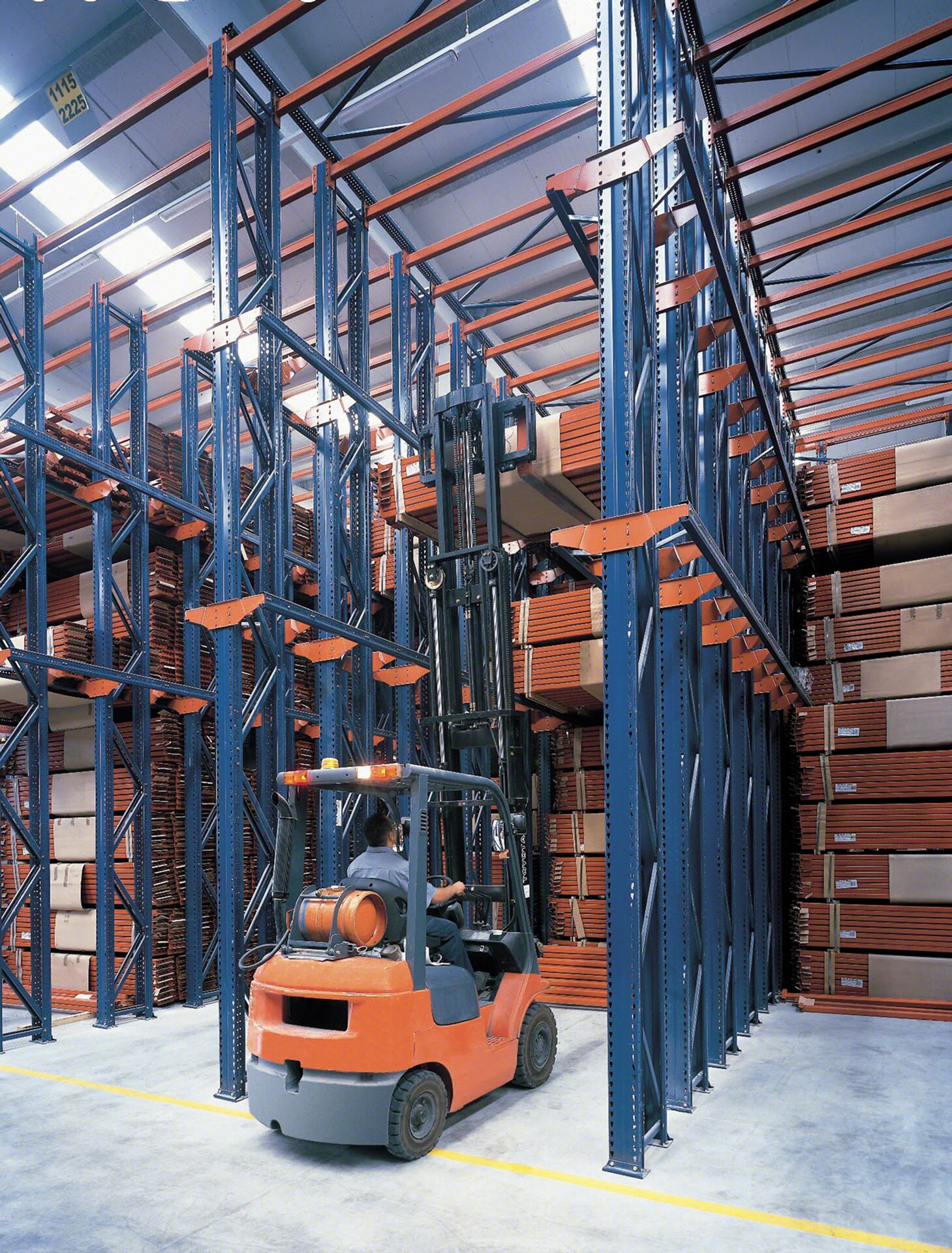

C brackets in the high-density systems indirectly support the weight of the goods

fbcc40f1-d70c-53bb-a7f5-8f74138608fd

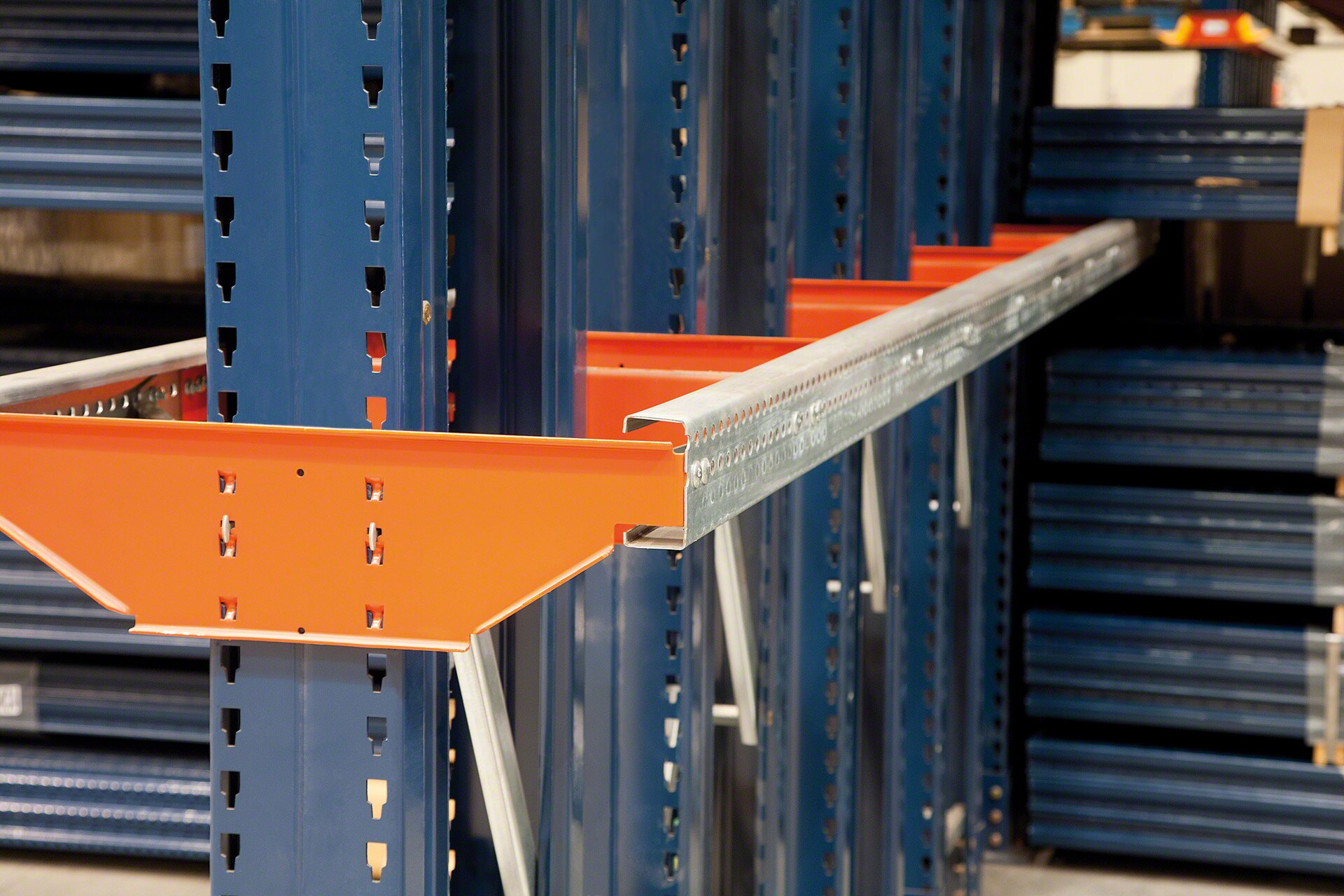

These brackets have two functions: support the weight of the goods and act as part of the support rail

2d7ad099-a963-f605-fb21-a5d58938bb91

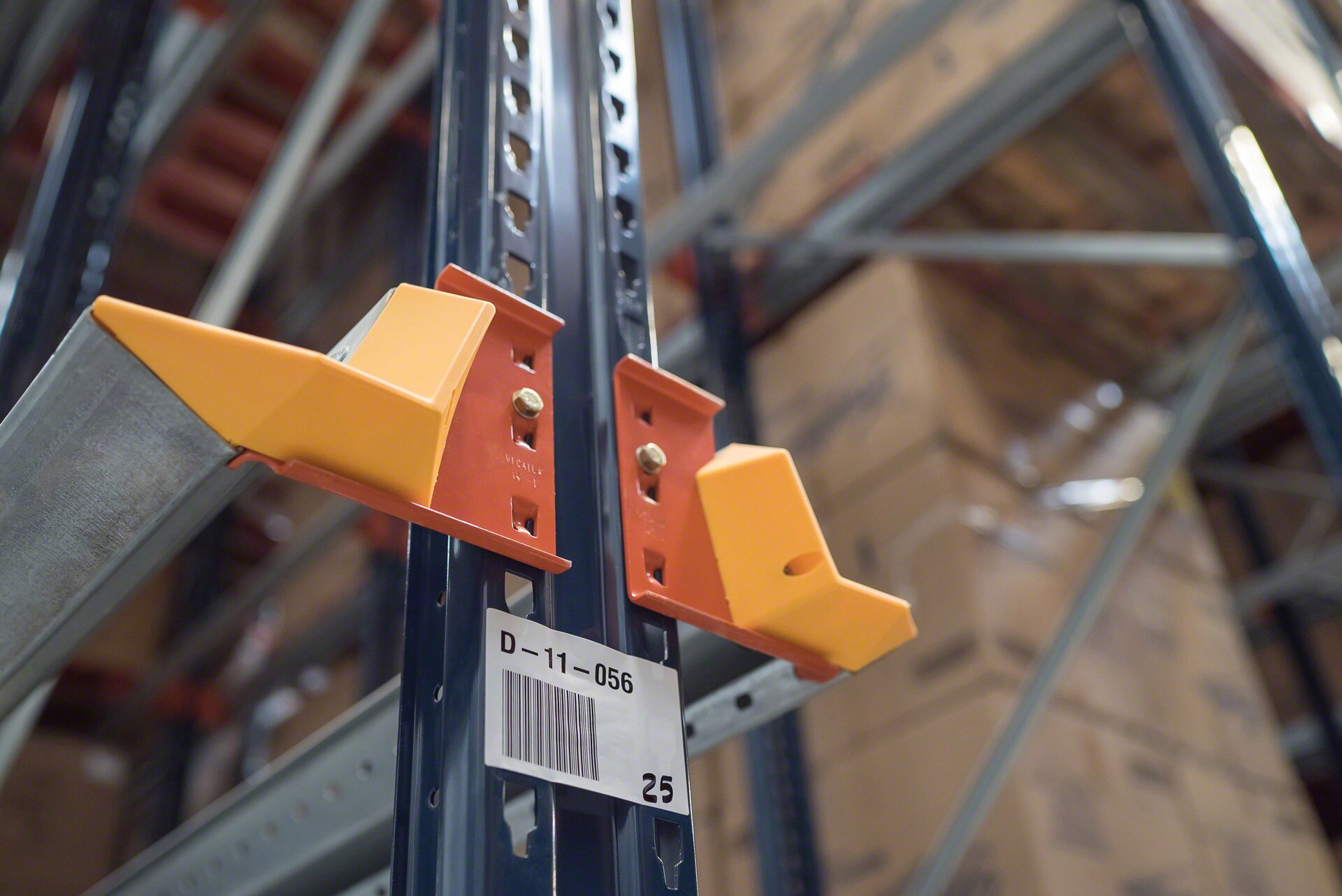

The pallet centralizer is a key element in drive-in shelving: it makes it easier for forklifts to handle the goods

9f737e6c-d6f1-9434-26aa-17332391f712

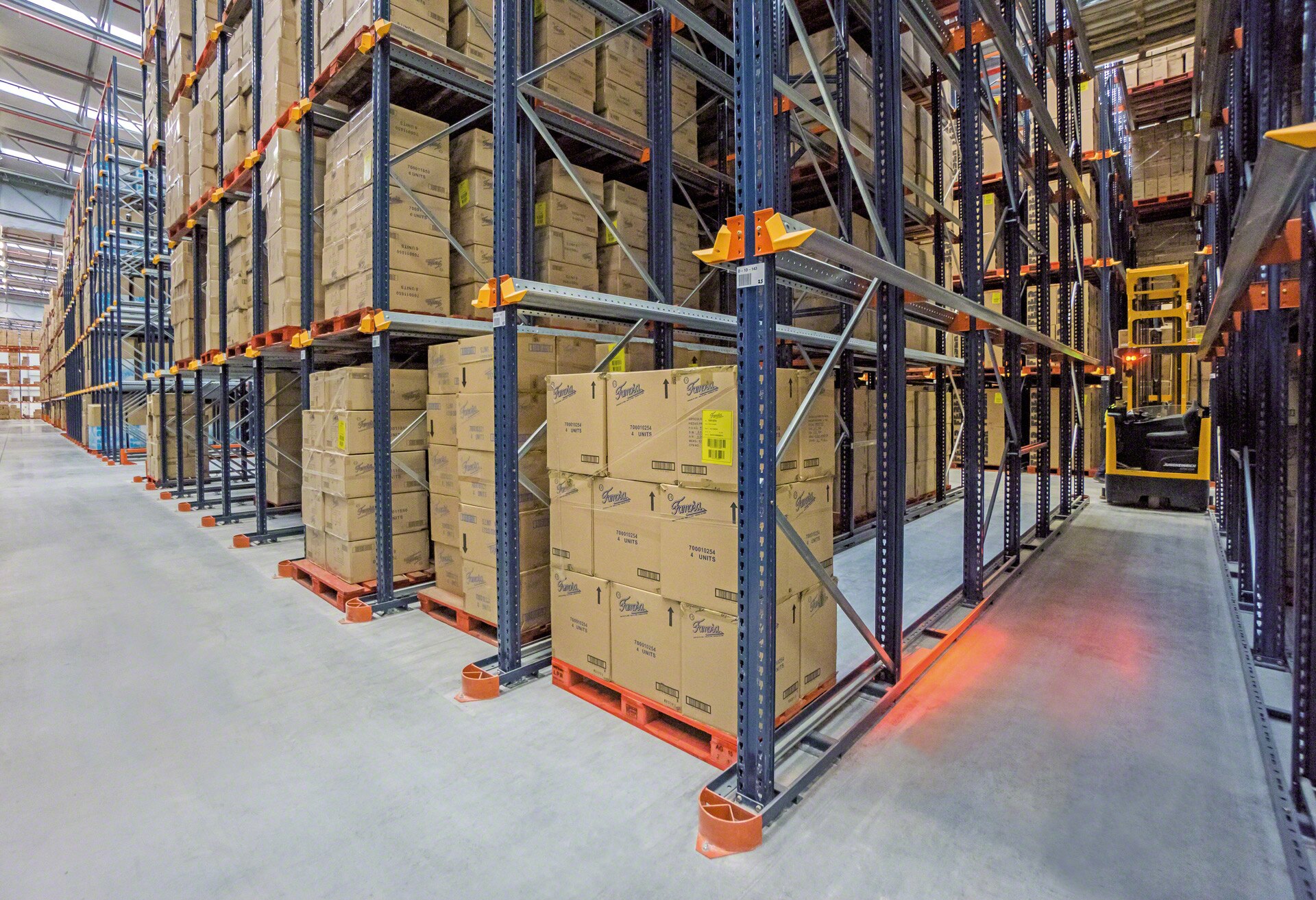

LPN guiderails are used when installations require product to be stored at ground level

a5c62ab2-e7fd-5ab2-2a56-8cee202411b9

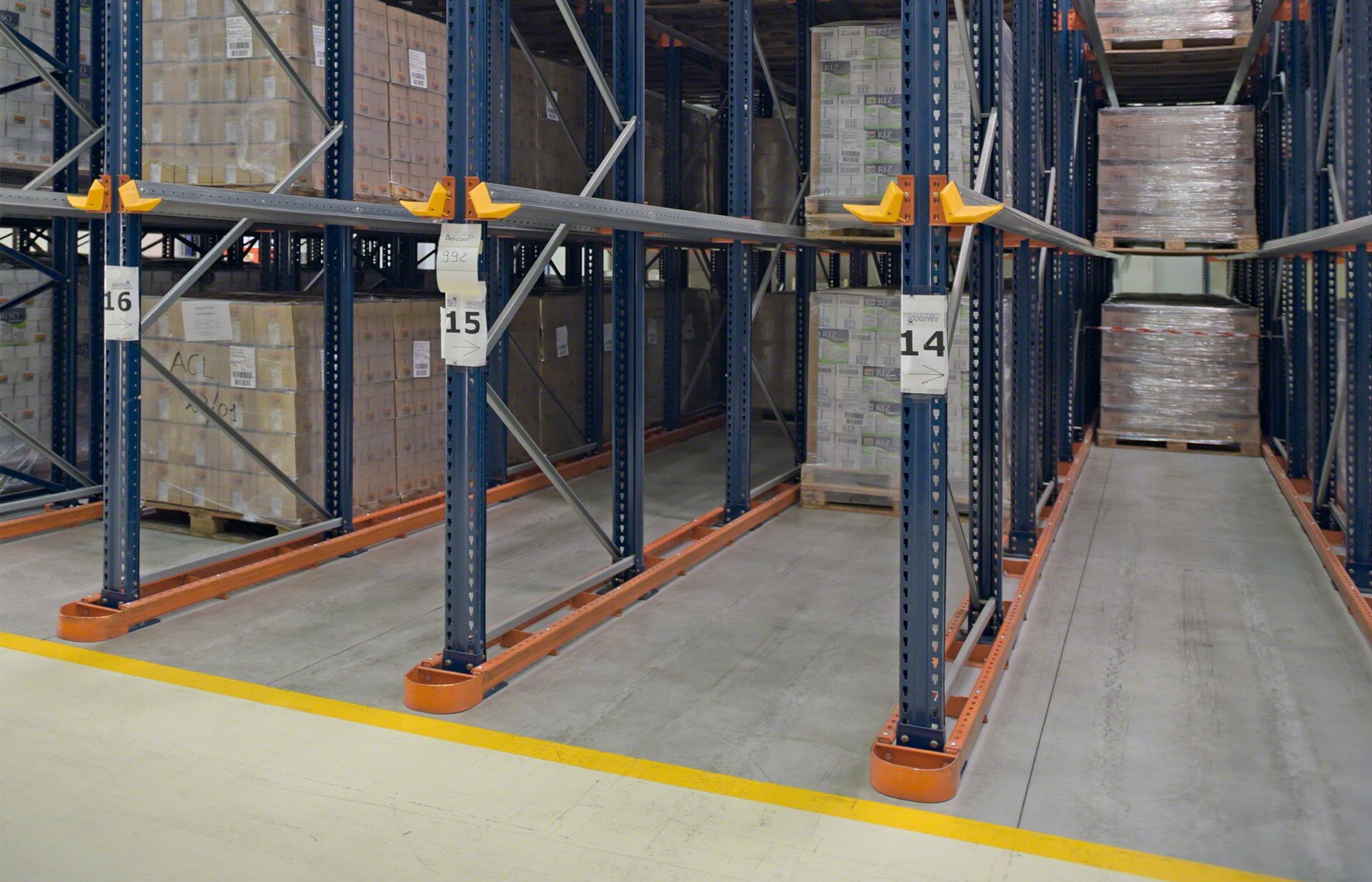

The VGPC guide rail is very common in warehouses where forklifts operate in drive-in racks

f299c07f-034d-5987-50b8-254a2dc235a2

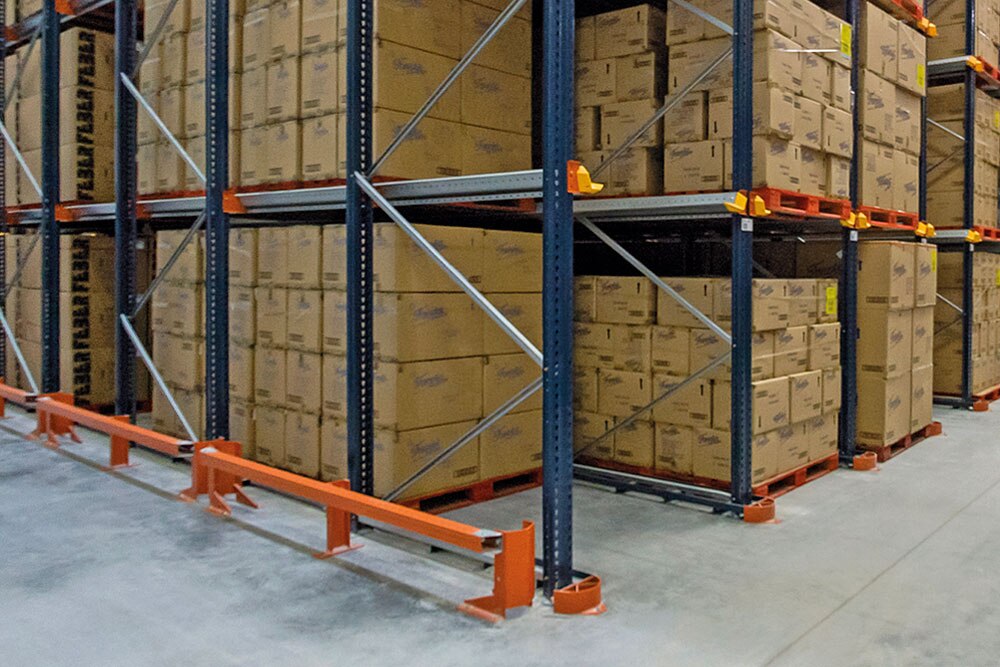

Upright footplates of the racks have side protectors to keep forklifts from damaging the rack structure

c97efd1a-a546-2b87-7dc8-67ef47582969

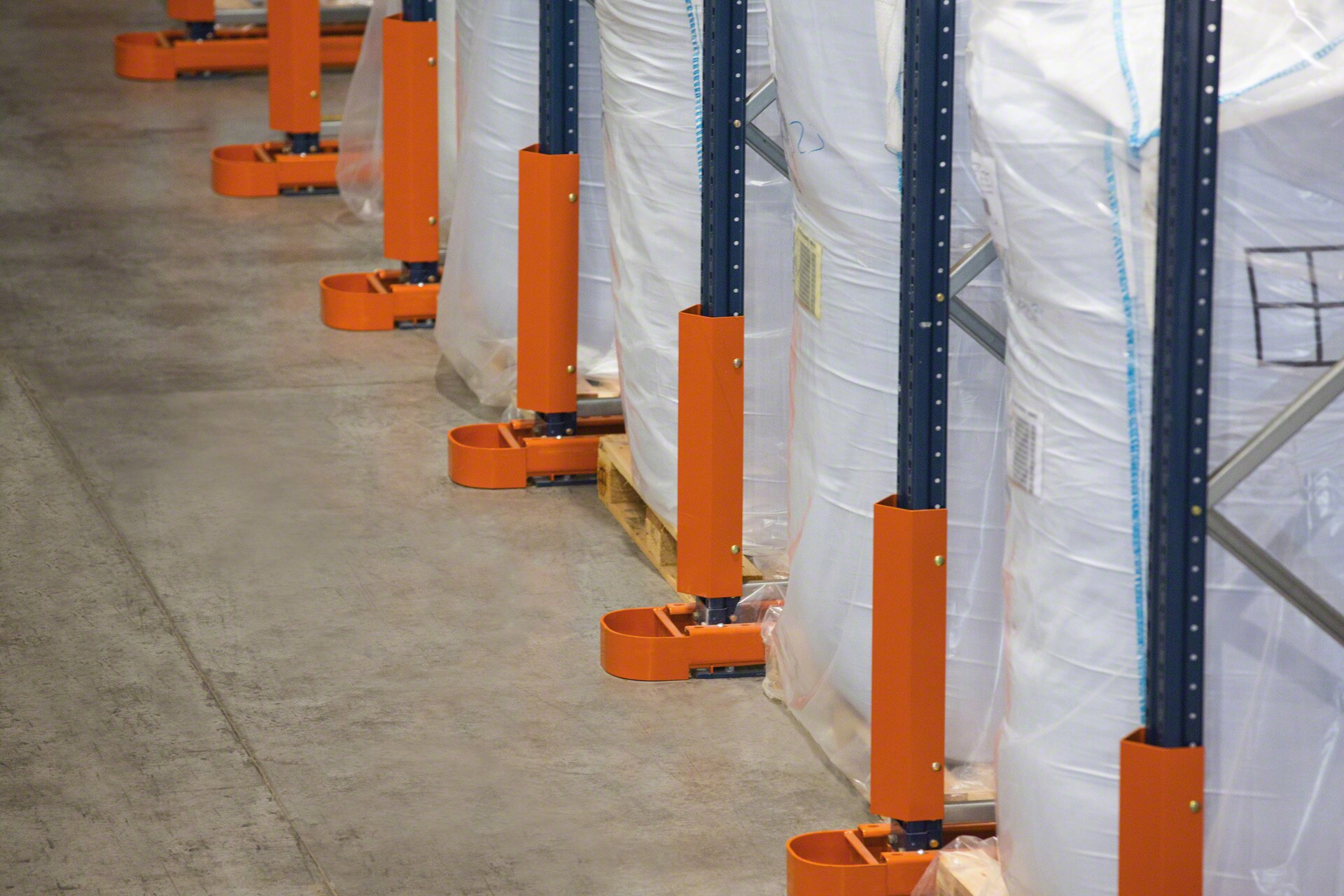

In drive-in pallet racks, upright reinforcements are added to the frames to prevent the forklifts from damaging the structure

3476fd83-2e0c-8d58-2683-e79b64efaabc

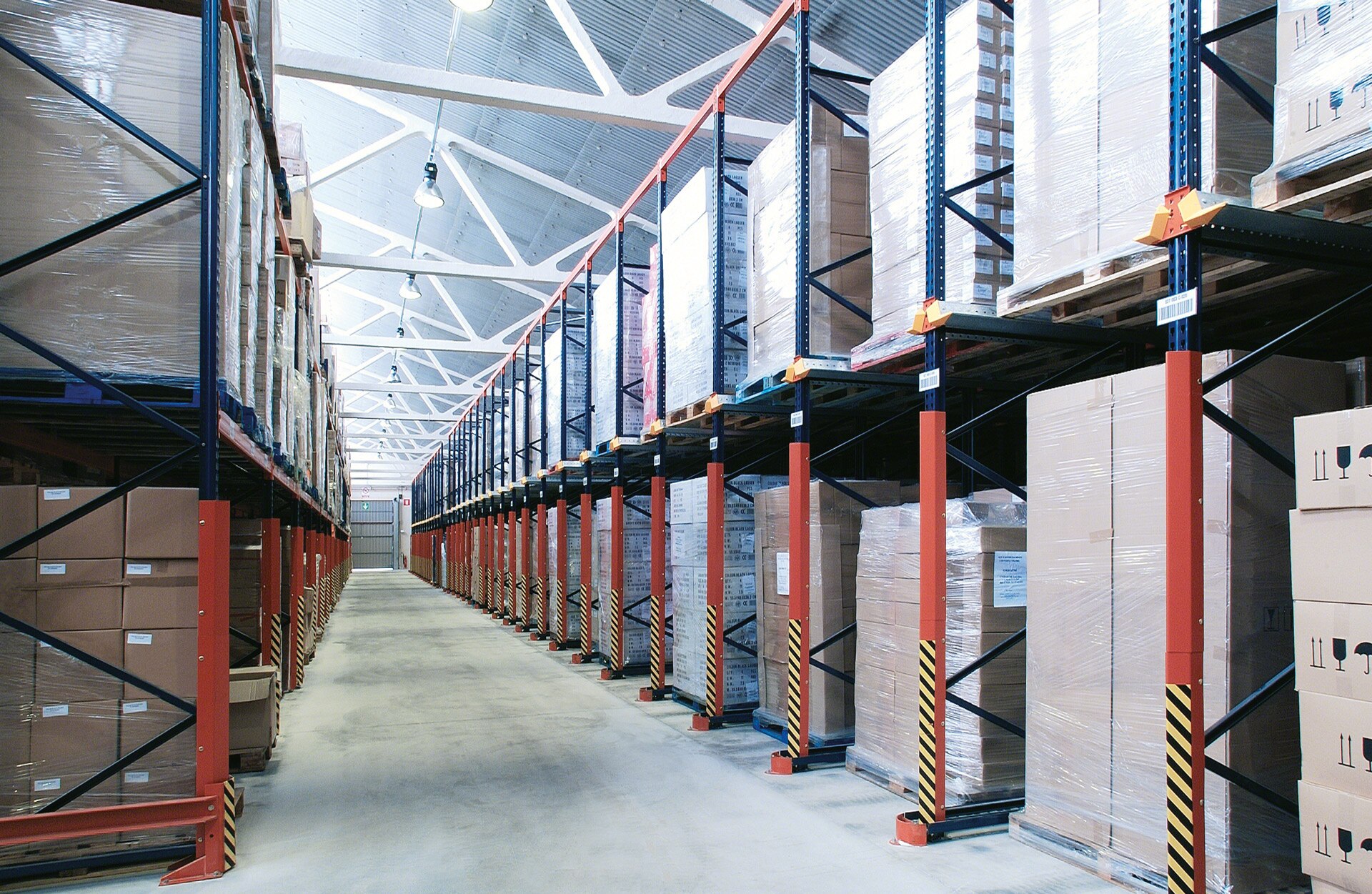

In extreme cases, double reinforcements can be added to the drive-in frames to prevent damage to the rack

93576626-fdbb-1eed-9e94-75adcb82b299

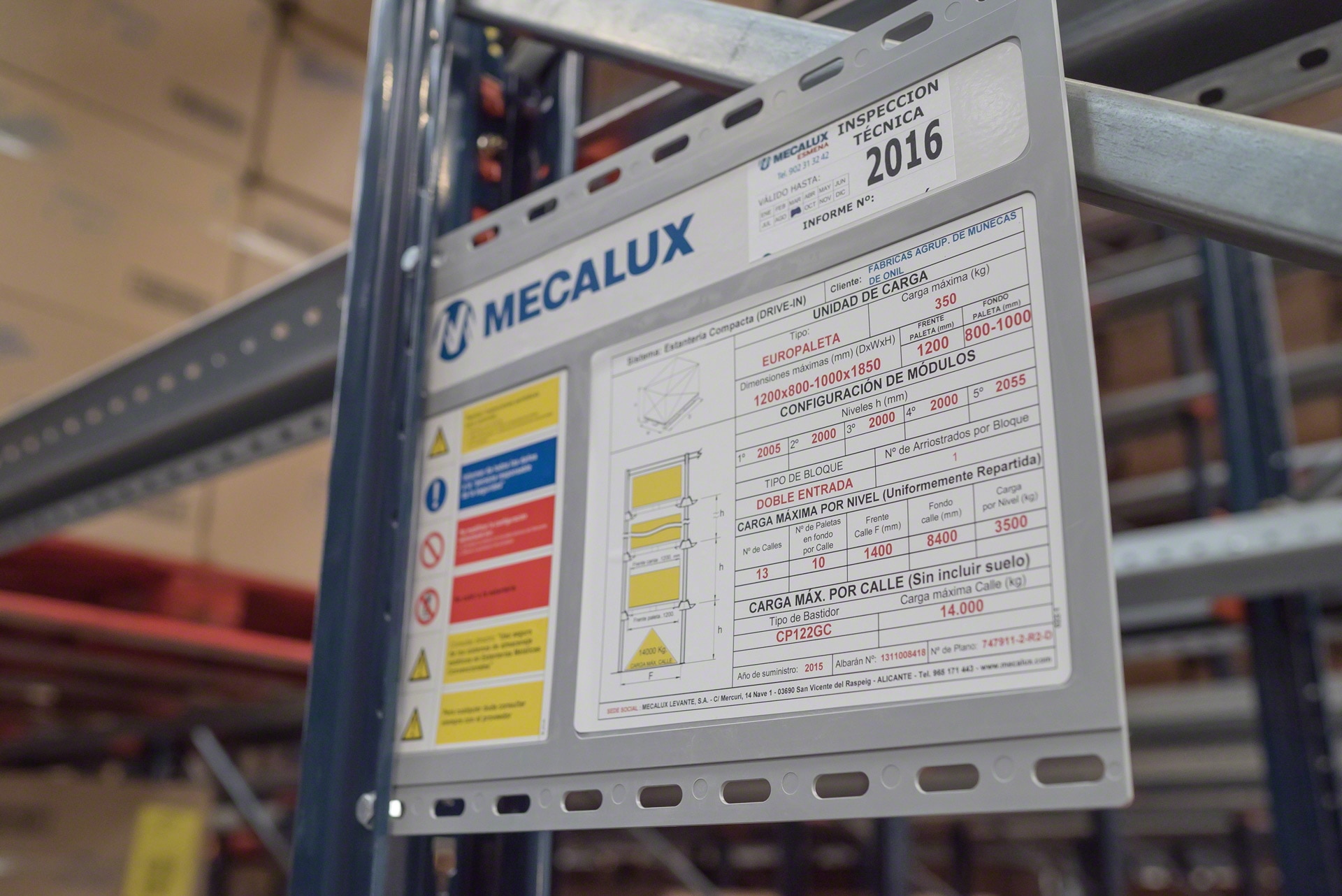

At the entrance to the compact warehouse, there should be a signaling plate indicating the technical data of the installation

7902a27d-ae6b-2bd7-7ab4-68cf165b5a2f

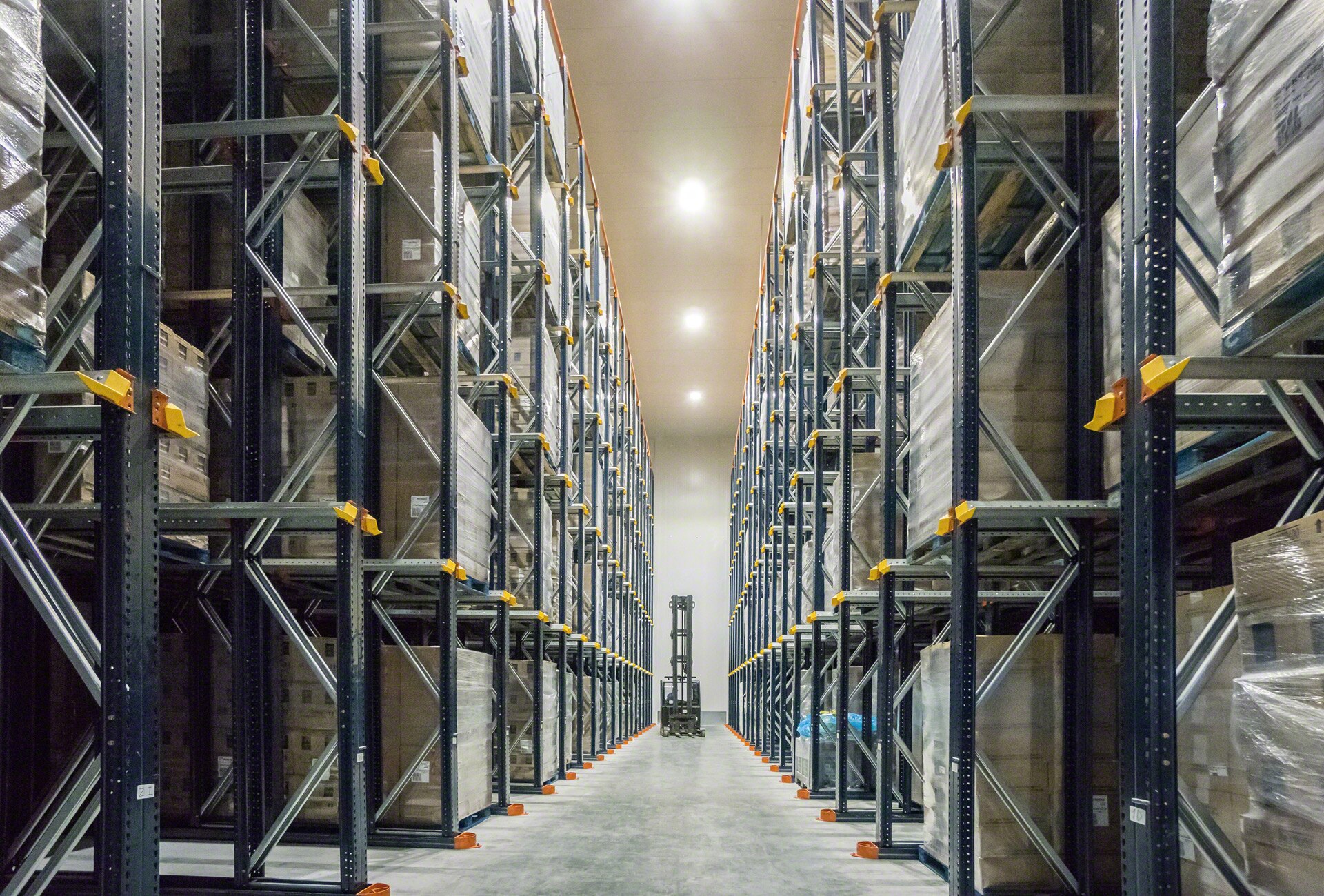

The drive-in system uses the maximum capacity of the warehouse, a key factor in cold-storage

3cba1bbe-0f7b-6c34-ef50-b3af7837da9e

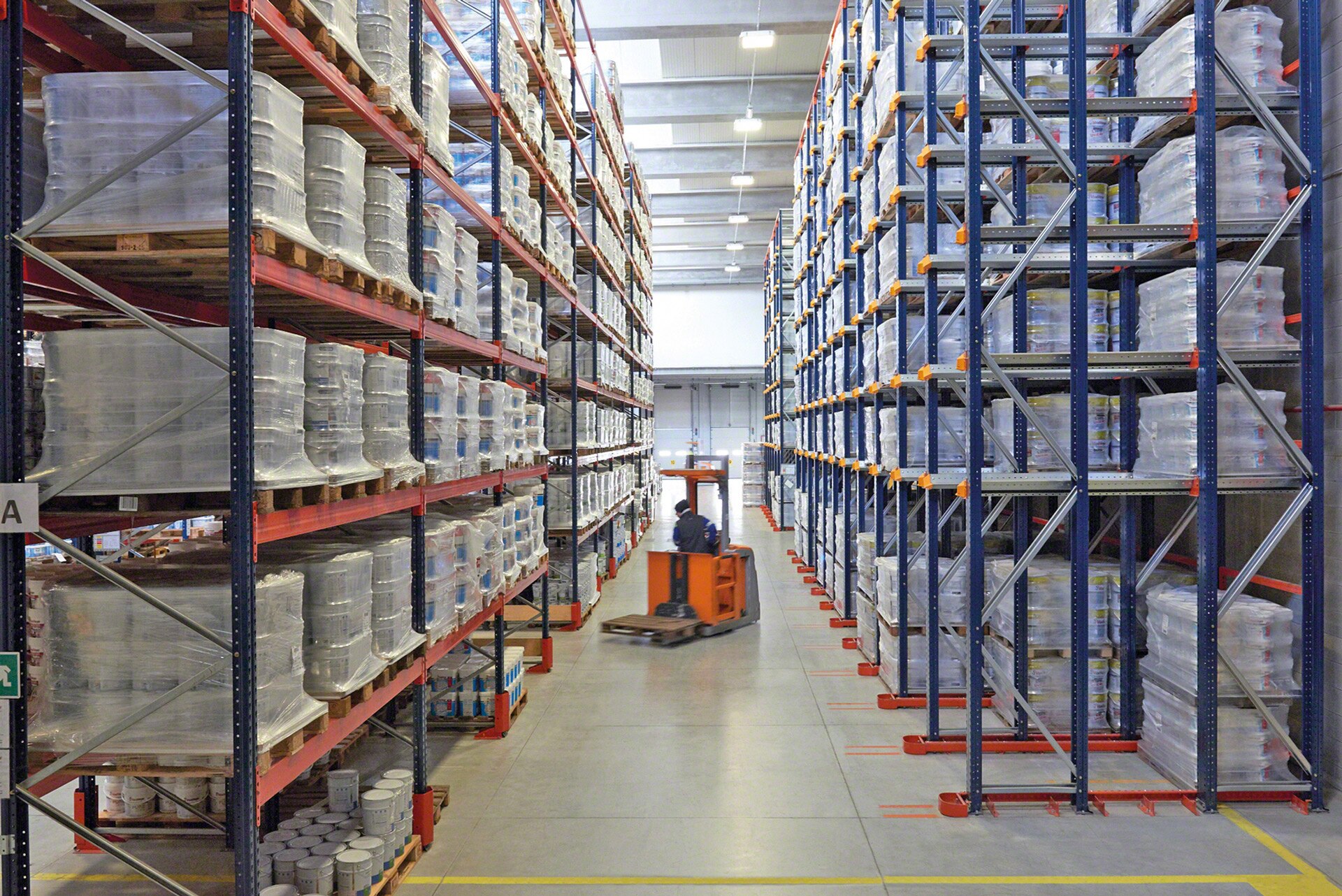

In order to optimize the operation of a warehouse, drive-in racks tend to be combined with other storage systems

77f1aa92-14f8-1903-8171-505162f365c4

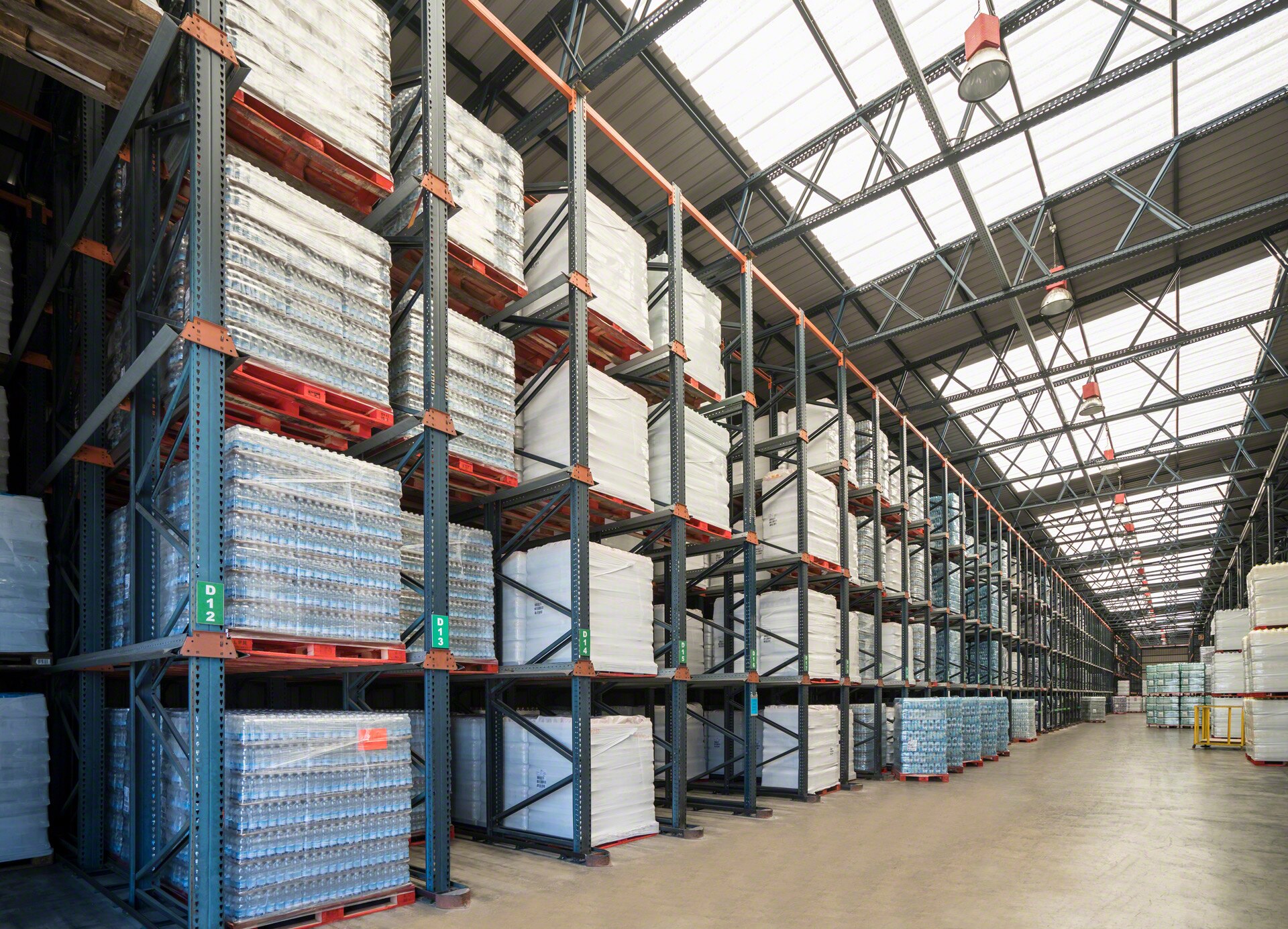

Drive-in racks can also comprise part of the warehouse structure and be turned into clad-rack installations

a93ccb50-08f2-86d8-9259-362d34c4787e

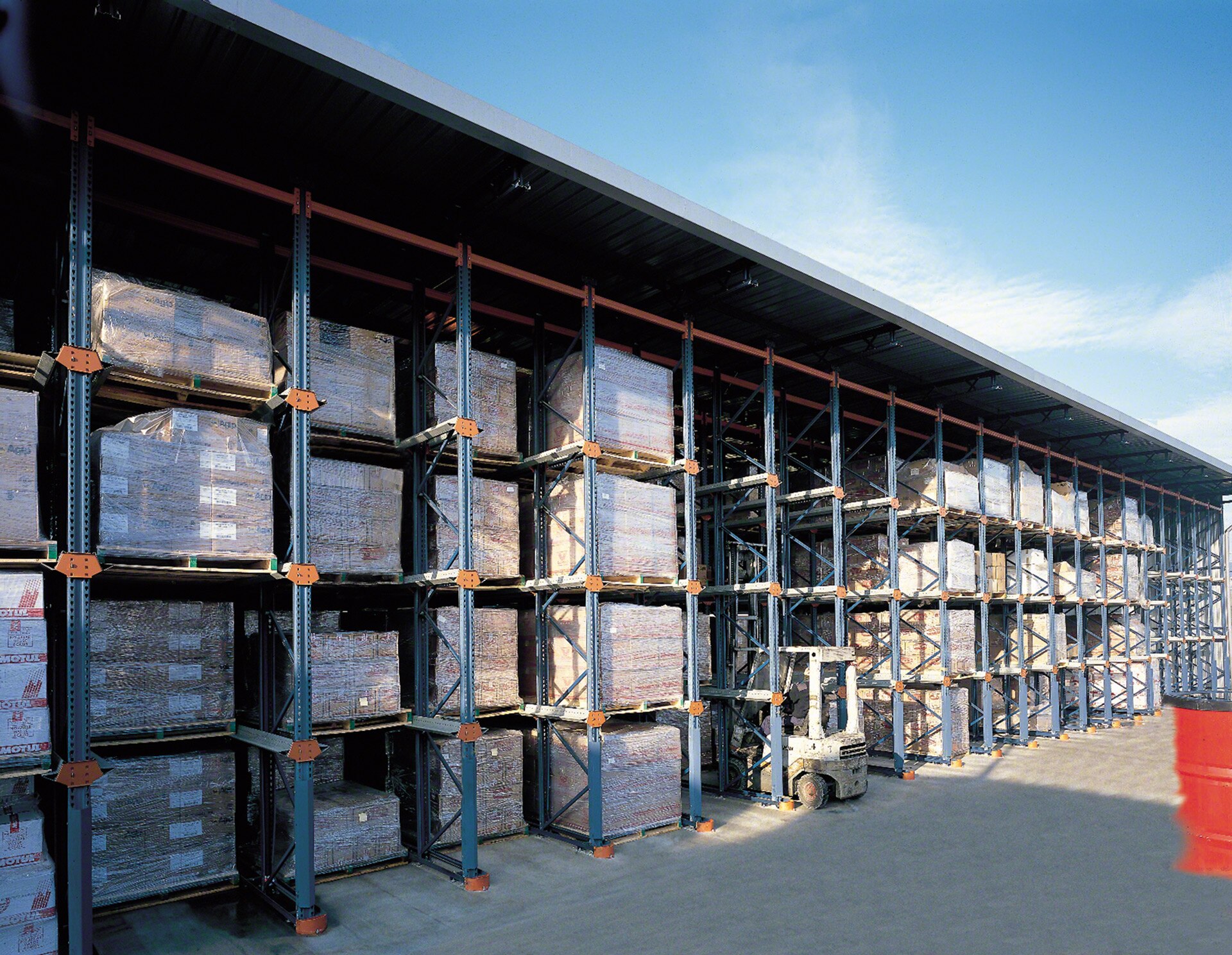

The storage channels of the drive-in racks can also be set up outdoors

0f0aae1c-d190-143c-6e7d-6894c8485726

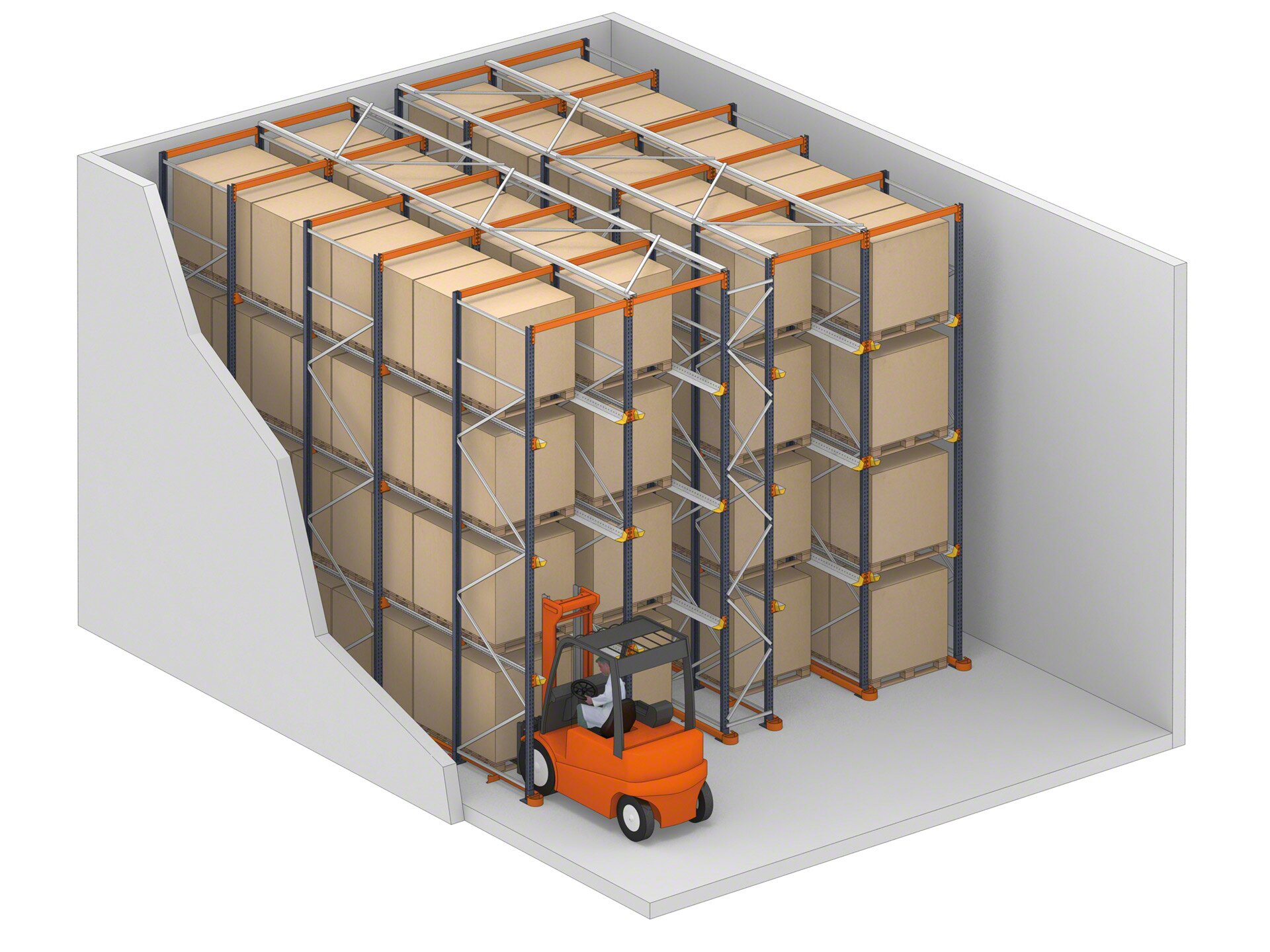

The drive-in system is a racking system in which forklifts can access the goods through its storage channels

60379f39-21a7-cb95-a4c9-bba6b9ef7ab6

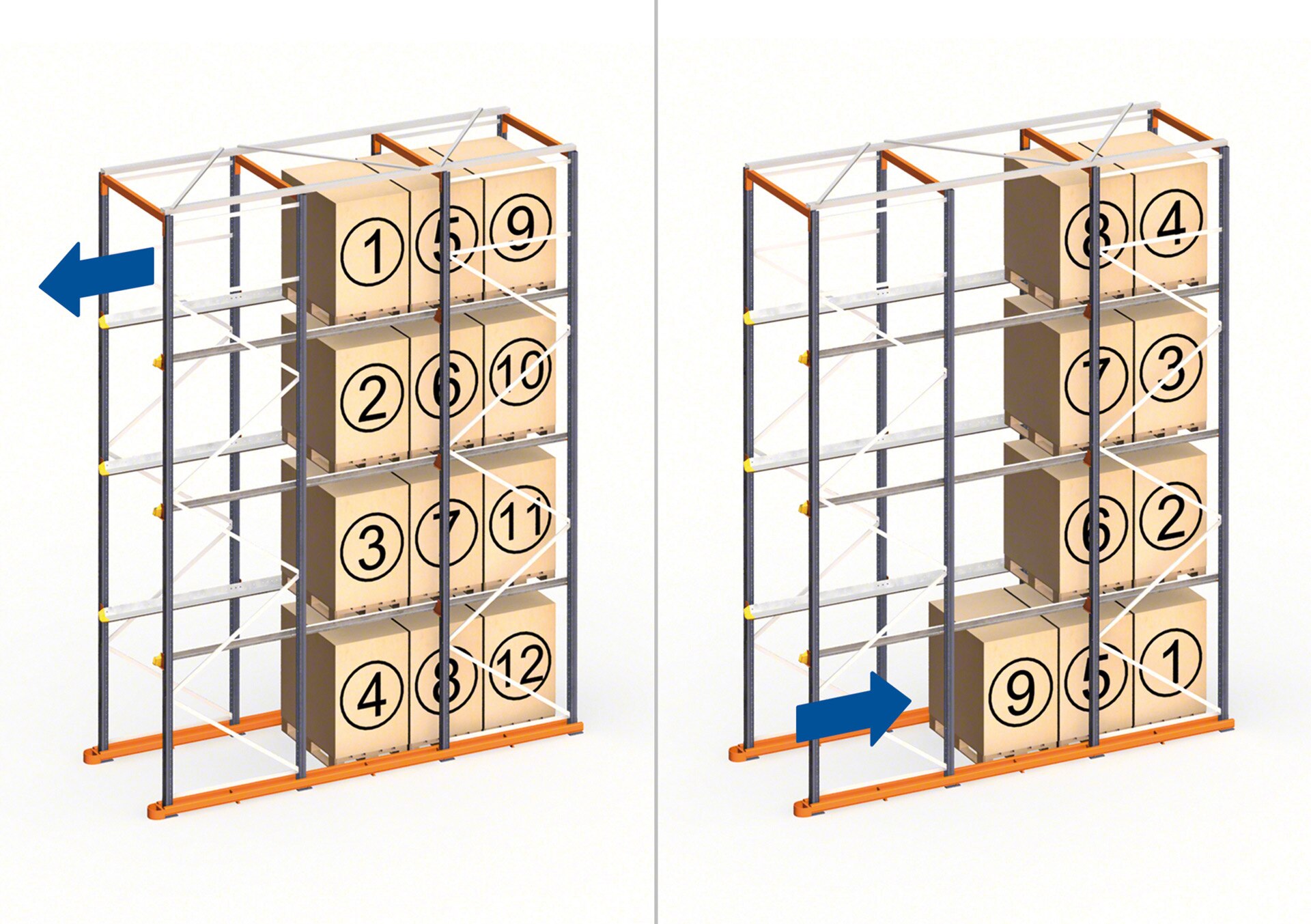

Drive-in racks in warehouses operator under the LIFO load order method

e541ce18-acc9-ea71-6c0f-da1ecaf670e7

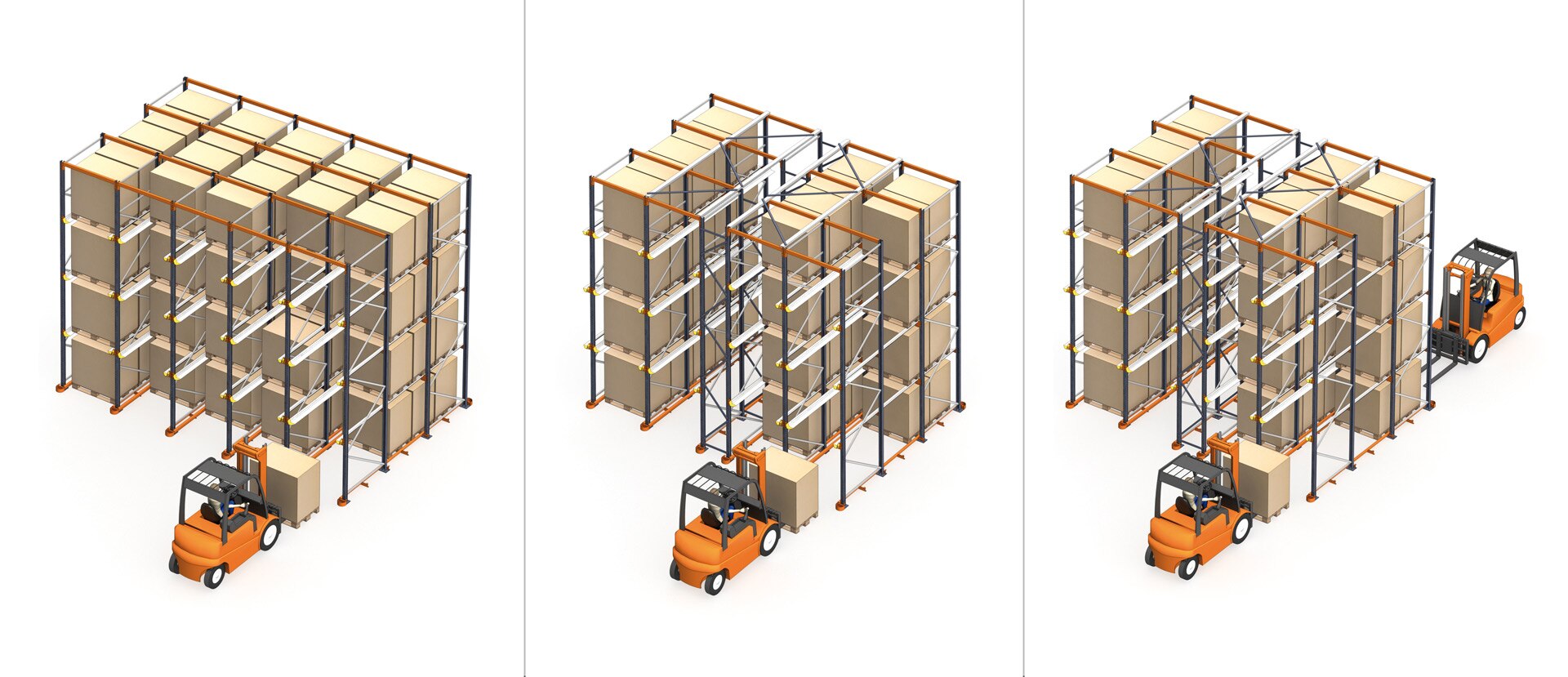

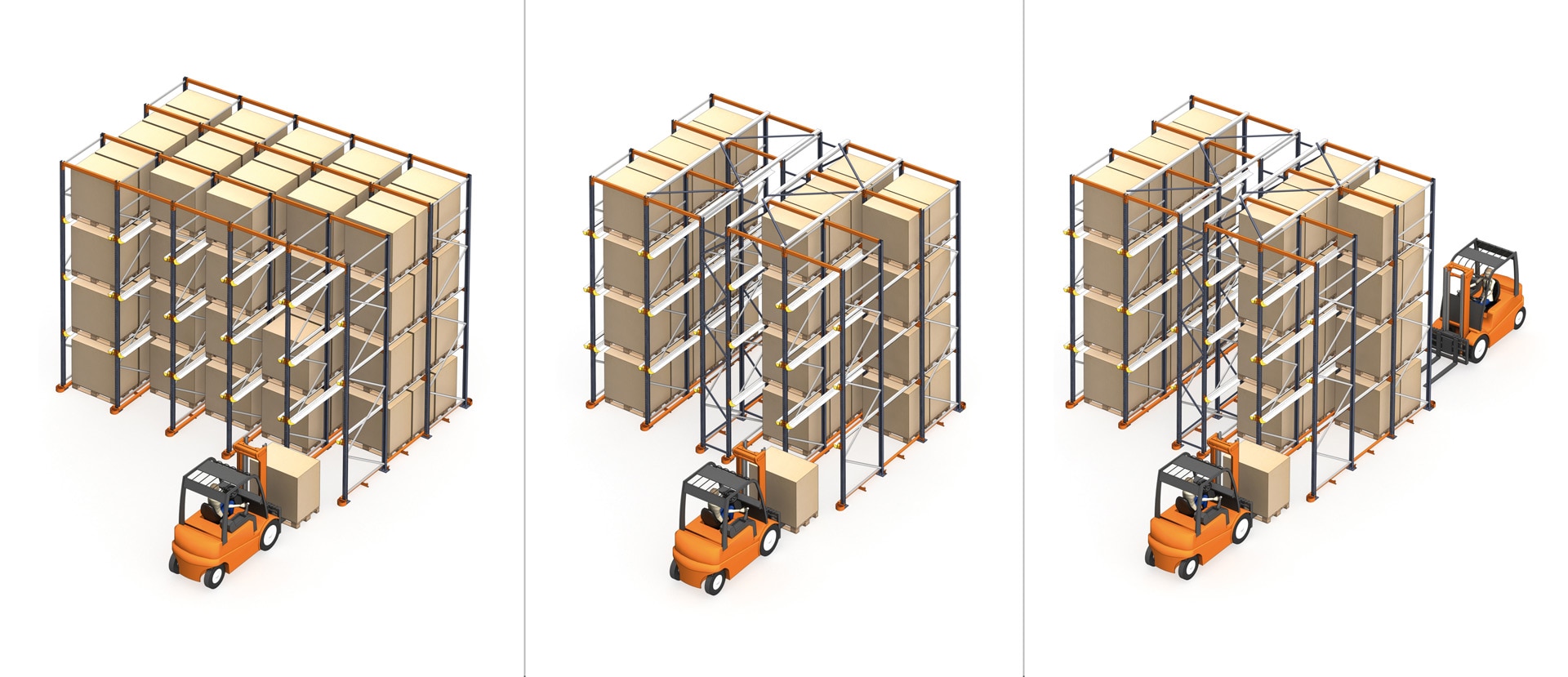

/img/drive-in-drive-through-racking

2c59d719-0e4b-757c-052c-2d11ea9d7e68

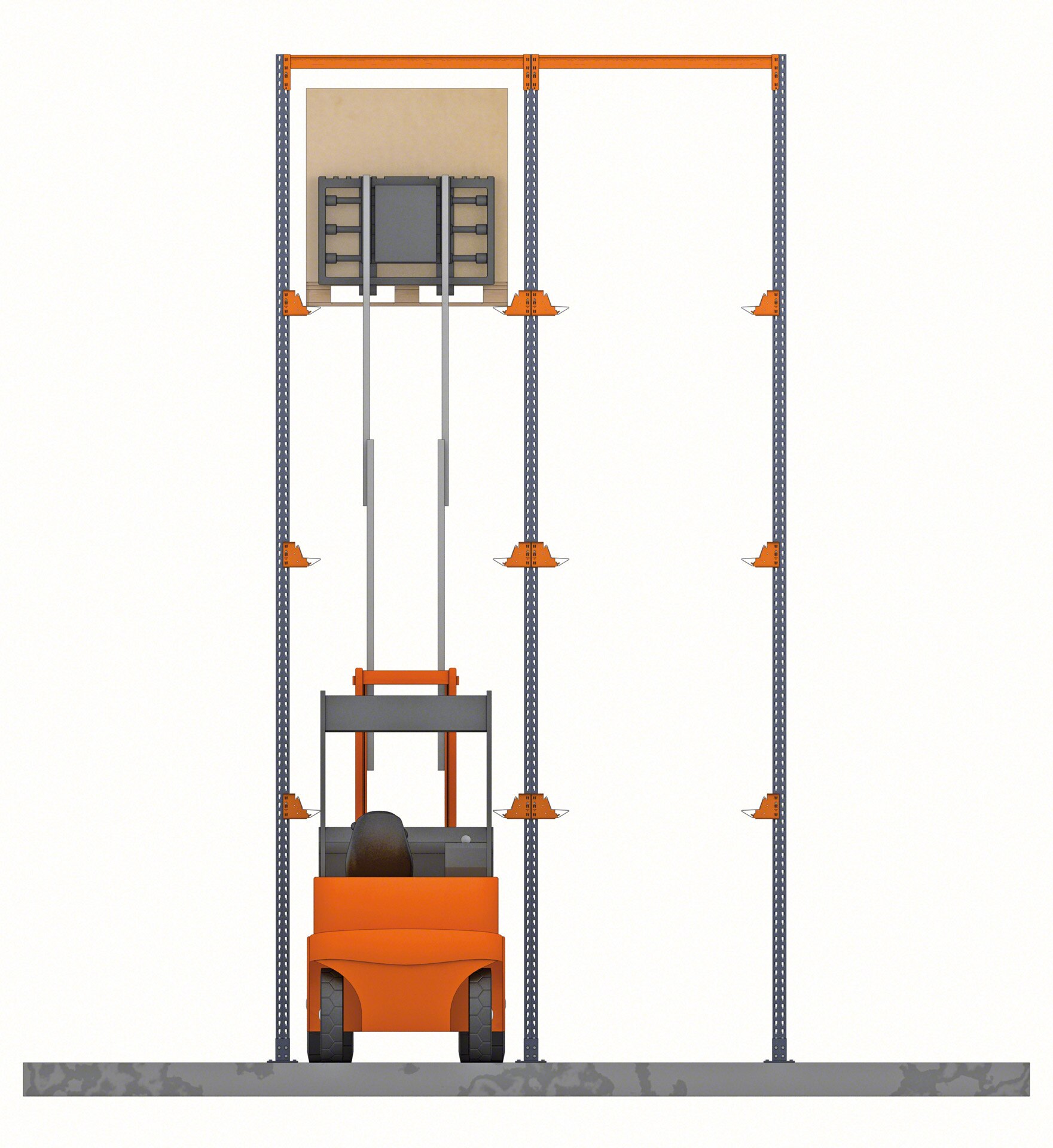

Safety margins are key so that forklifts do not damage the structure of drive-in racking

a56ec26a-22eb-4168-2dd1-2222e9087ef2

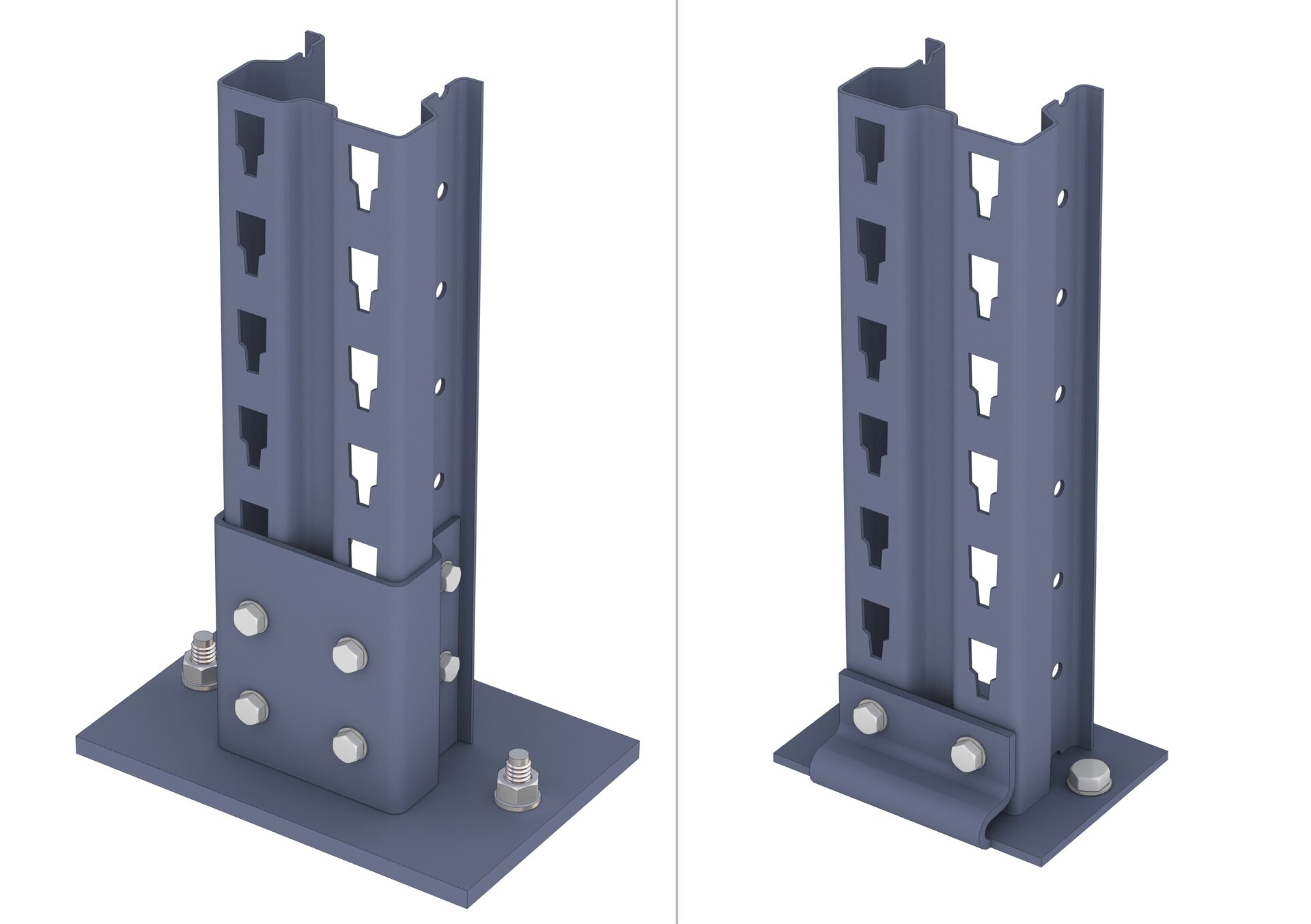

Upright footplates of the racks have side protectors to avoid damage to the structure

bf8013e3-218b-1dc2-91f1-37cd4f462b52

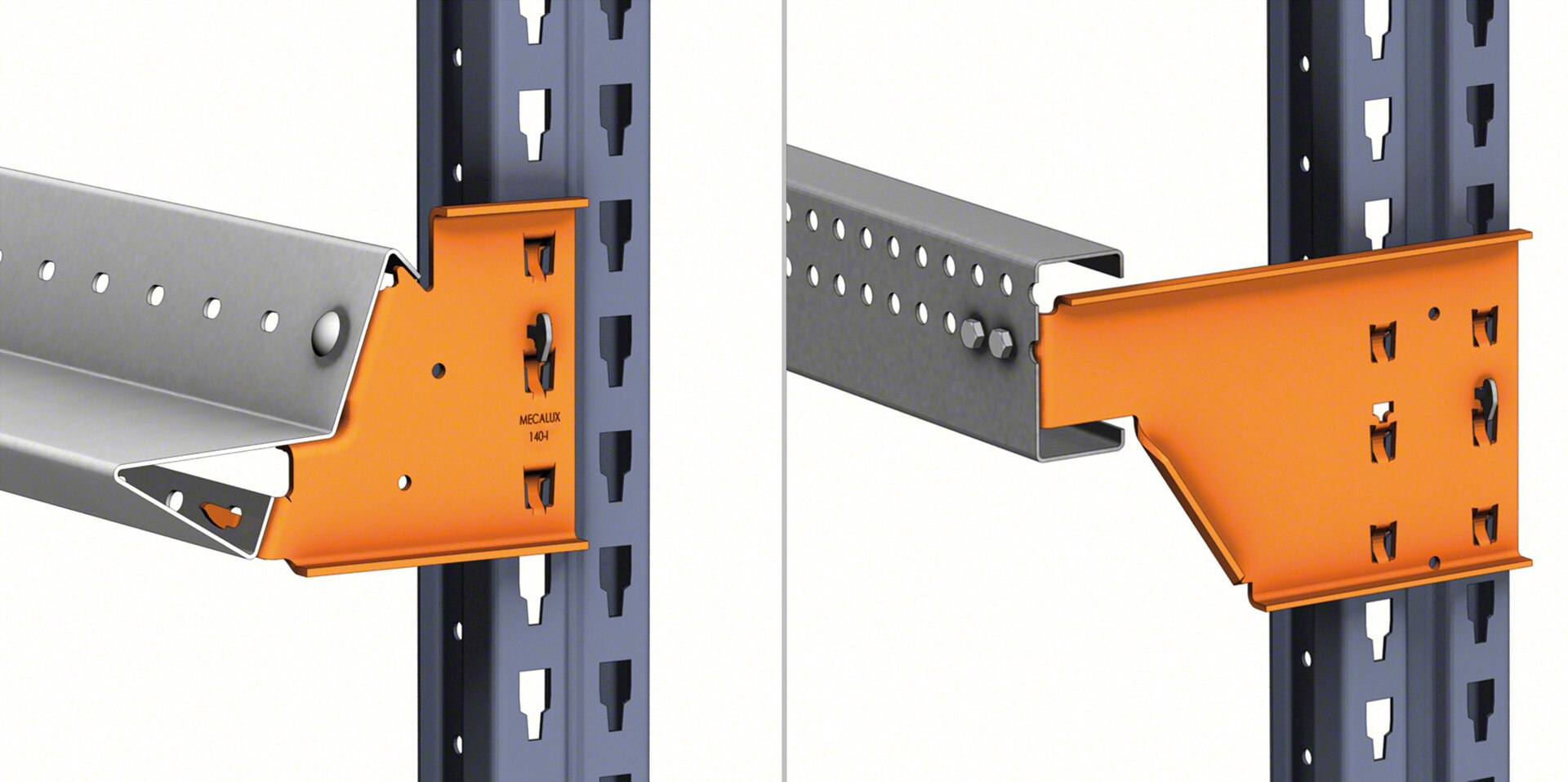

Although GP brackets are the most common, some pallets require an additional C support to protect the load

922e55af-88e8-bf41-0172-f0176901a545

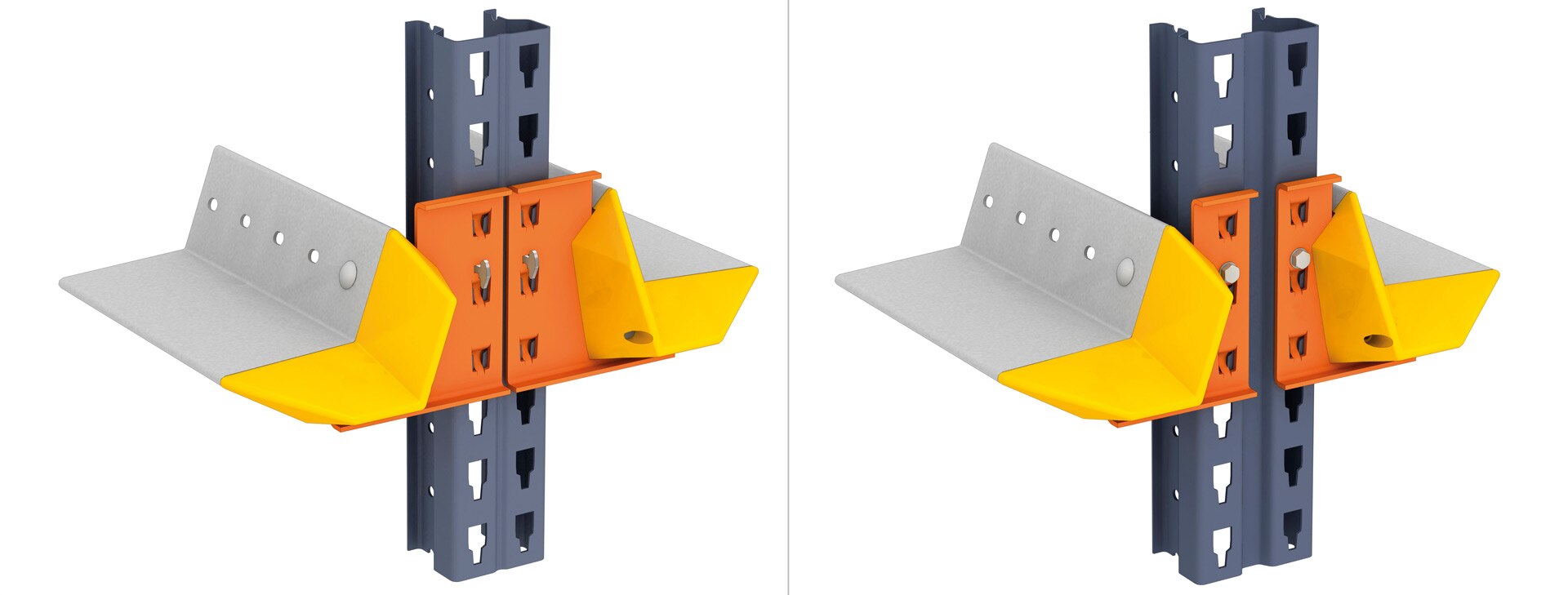

These pallet centralizer are used to guide the handling equipment in the loading and unloading of goods

6cbbae1c-bf4c-f0aa-c8e2-7ddc97283c50

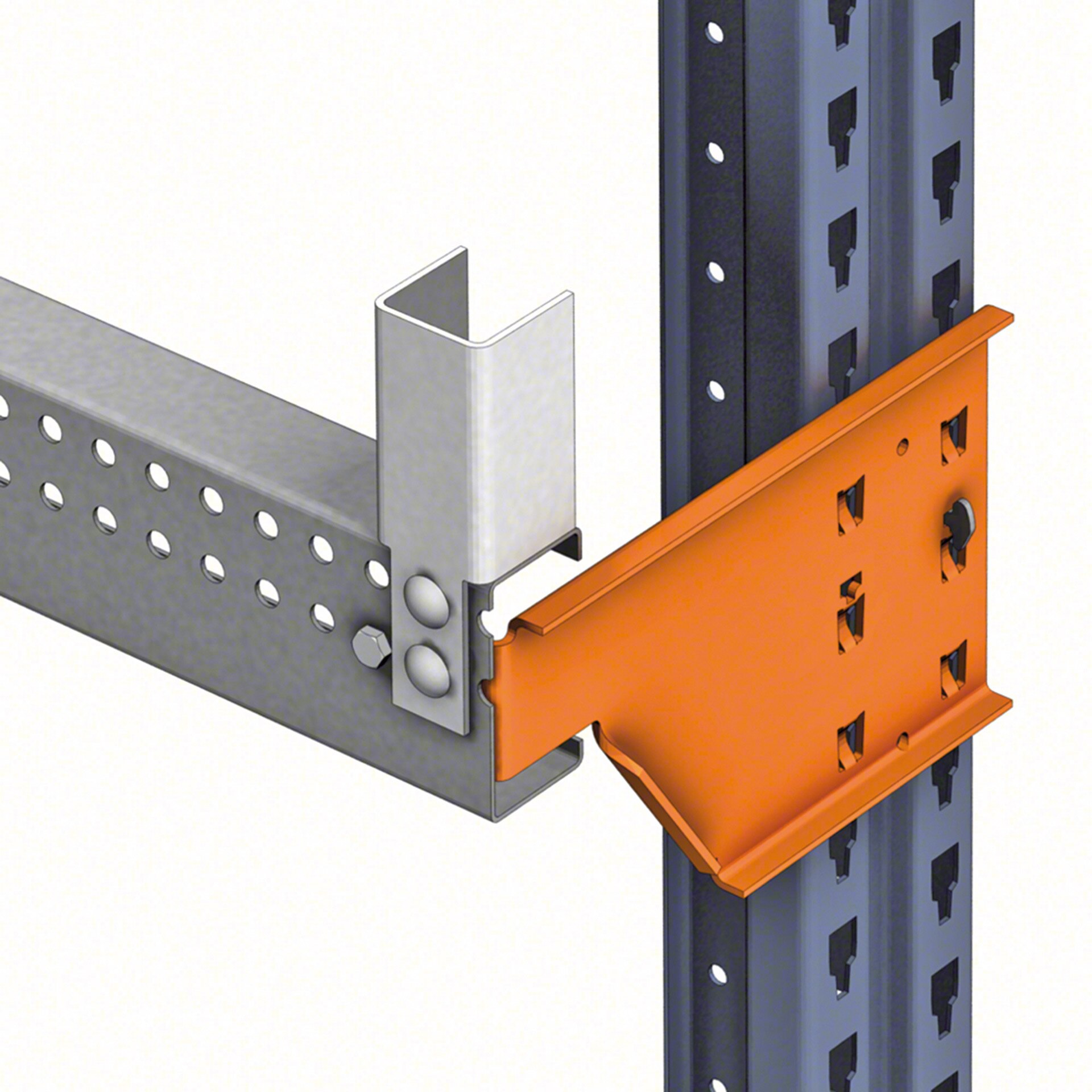

The C brackets are specifically for installations where a long goods need storing

786a0891-44f1-3ff3-32b9-aafddc79cbd8

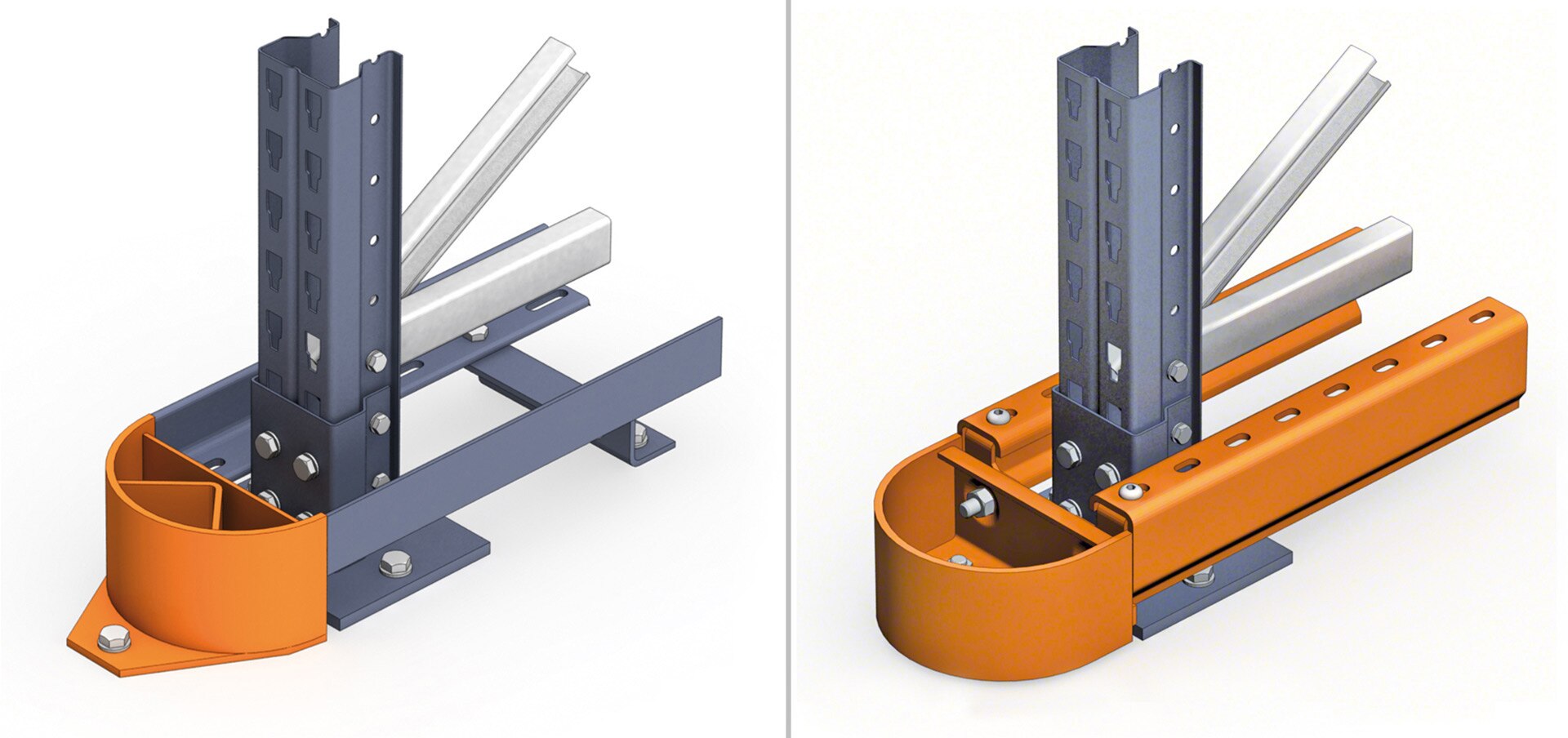

In drive-in racks, the guides minimize the risk of damage to the structure

04db3701-2a8c-5a98-9a86-e091f00e9f42

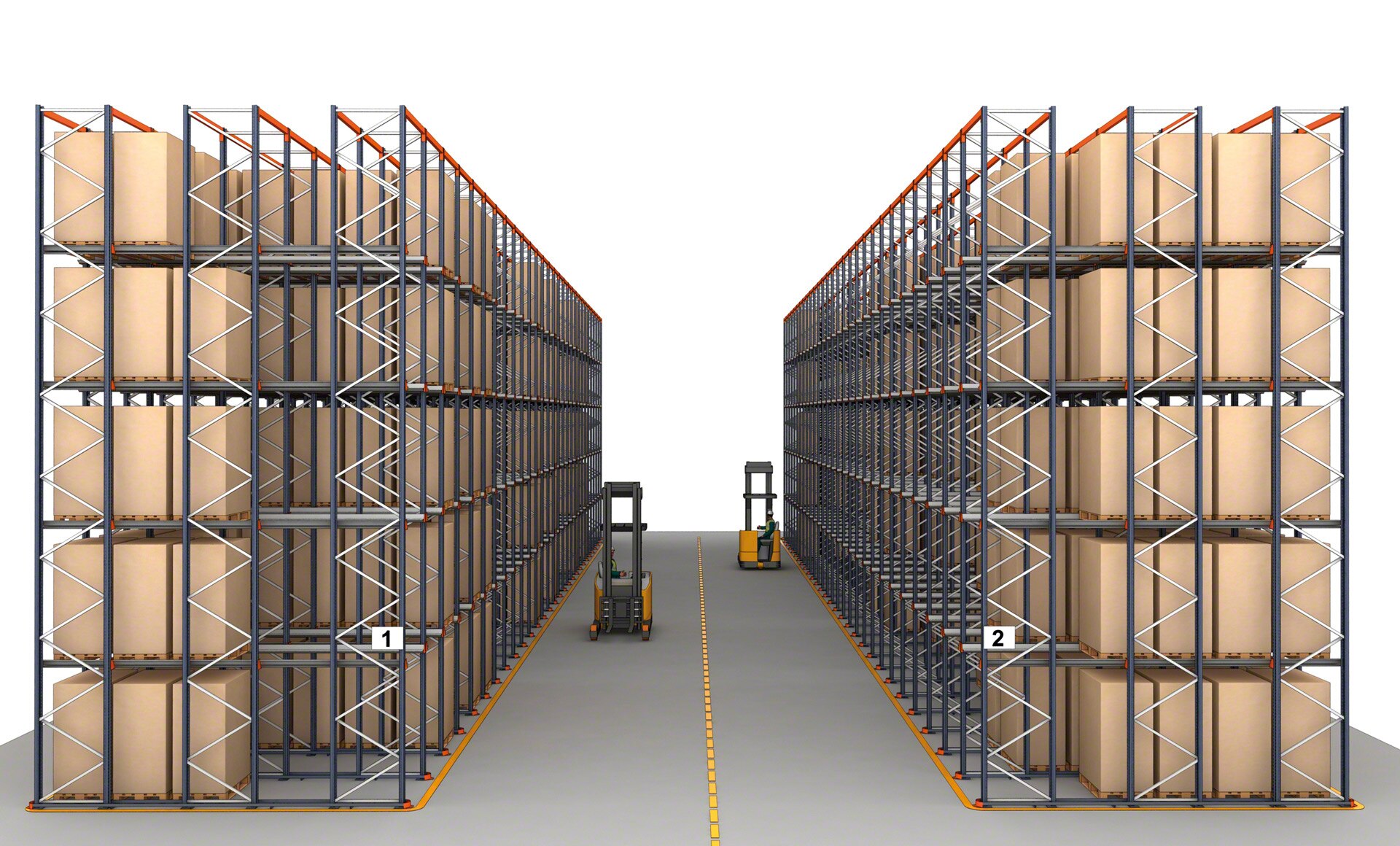

In drive-in warehouses, the use of guide rails is essential to ensure operator safety

73a9a9ed-9ba2-567d-1932-8c36a8eeb63a

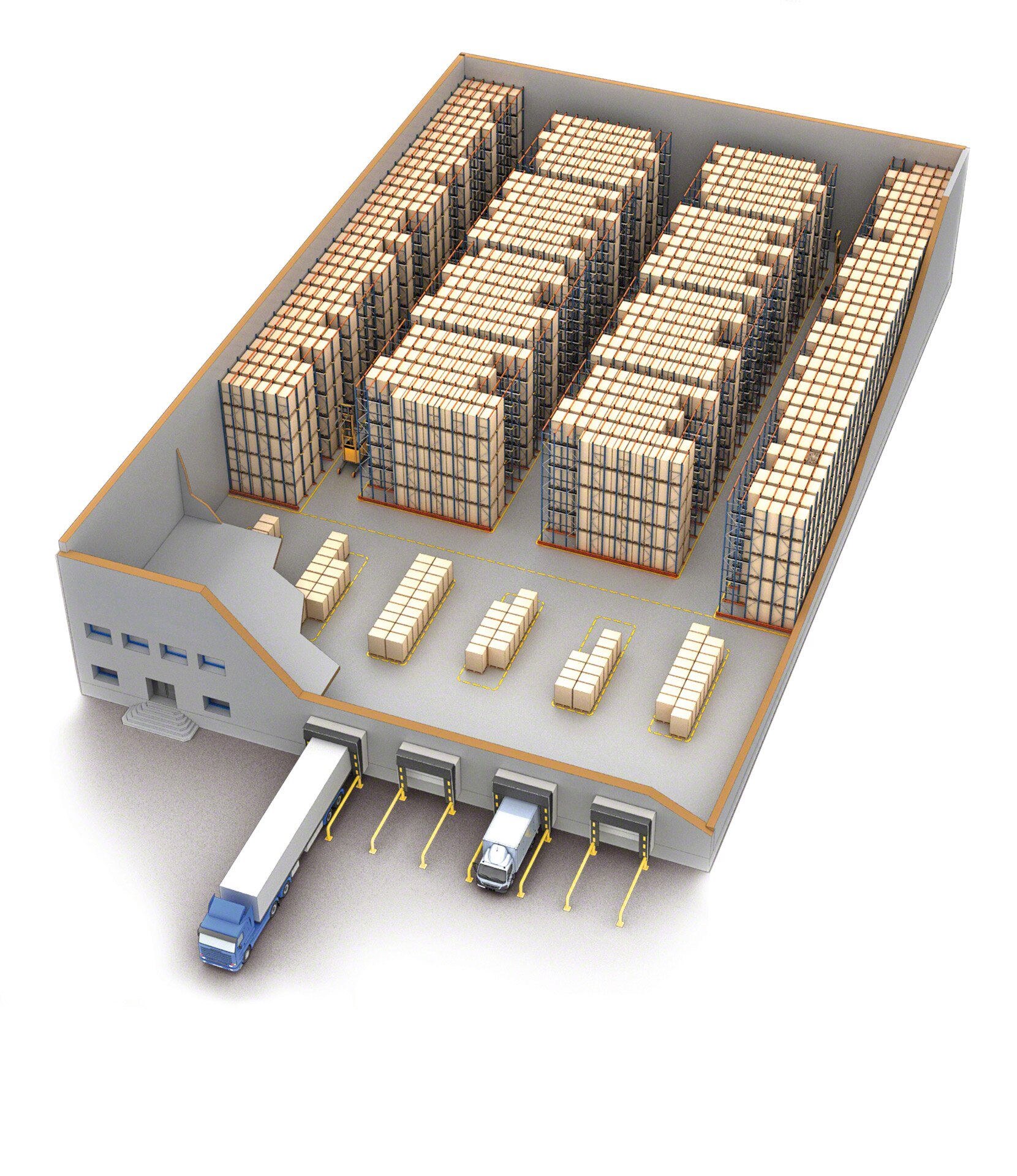

Yellow safety signs throughout the warehouse serve as guides for operators

5940cc4c-3573-0a5f-dc56-0226f6bd0743

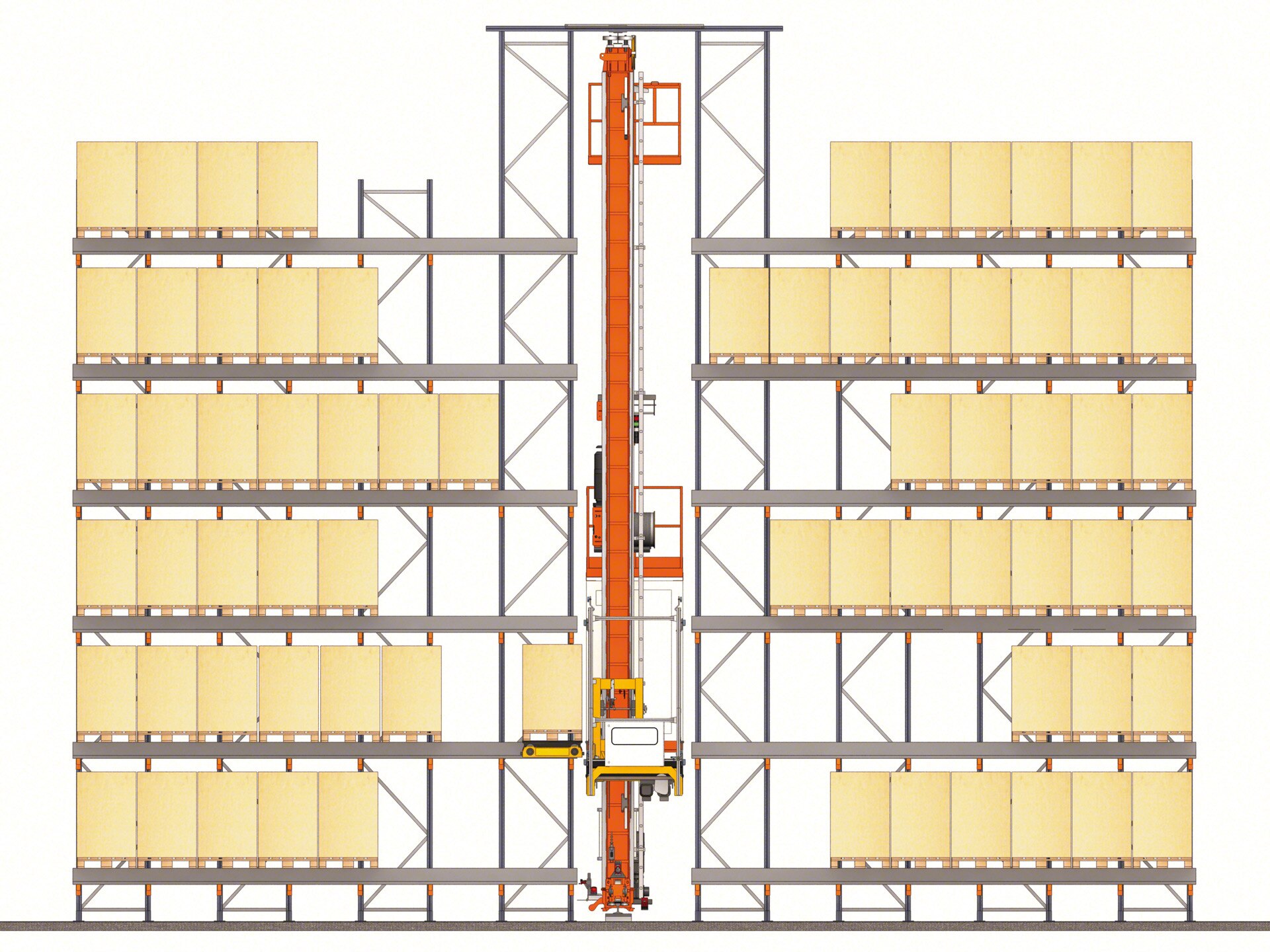

Drive-in warehouses also support automation: Pallet Shuttle or stacker cranes can be included, among other elements

e79c1ee3-0331-8aea-d540-ac71376eca87

Depozitare prin acumulare care facilitează utilizarea la maximum a spațiului disponibil, atât în suprafață, cât și în înălțime.

Acest sistem compact de depozitare este compus dintr-un set de rafturi, care formează benzi interioare de încărcare, cu șine de sprijin pentru paleți. Stivuitoarele pătrund pe aceste căi interioare cu încărcătura ridicată peste nivelul la care urmează să fie depozitată.

Toate nivelurile fiecărei benzi trebuie să găzduiască același SKU, motiv pentru care este ideal pentru depozitarea multor paleți de produse omogene cu rotație redusă.

Rezistența mare a materialelor care alcătuiesc acest tip de rafturi permite depozitarea paleților foarte încărcați.

Avantaje

  • Rentabilitatea maximă a spațiului disponibil (până la 85%).
  • Eliminarea culoarelor dintre rafturi.
  • Control strict al intrărilor și ieșirilor.
  • Admite tot atâtea referințe câte benzi de încărcare există.

Există două sisteme de gestionare a încărcăturii: sistemul drive-in, cu un singur culoar de acces, și sistemul drive-through, cu două accese la încărcătură, câte unul pe fiecare parte a raftului.

Sistemul compact este utilizat pe scară largă în camerele frigorifice, atât pentru refrigerare, cât și pentru congelare, care au nevoie să profite la maximum de spațiul alocat depozitării produselor lor la o temperatură controlată.
